Plastic Cup Thermoforming Machines, Three-station thermoforming machines、Vacuum Forming Machines, Sheet Extrusion Lines & Custom Mold Solutions
24+ Years Experience
Serving Plastic Packaging Manufacturers Worldwide
CE Certified Machinery
Stable Performance & Reliable Quality
Turnkey Production Line Solutions
Complete Equipment, Mold & Training Support
Global Installation Service
Online Guidance & Overseas Engineer Support
Explore The Packaging Products Manufactured By Our Thermoforming Machines And Complete Production Lines.

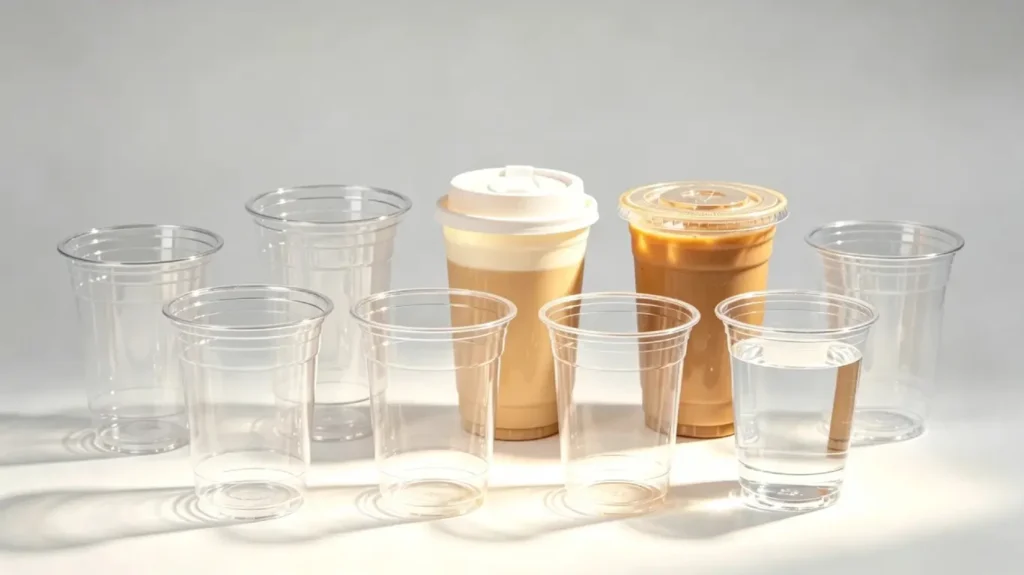

Suitable for:PP Cups、PET Cups、Milk Tea Cups、Disposable Water Cups、Jelly cups
Suitable for:Lunch Boxes、Takeaway Containers、Food Trays
Suitable for:Fruit Trays、Meat Trays、Vegetable Trays、Fresh Produce Trays、Egg Trays

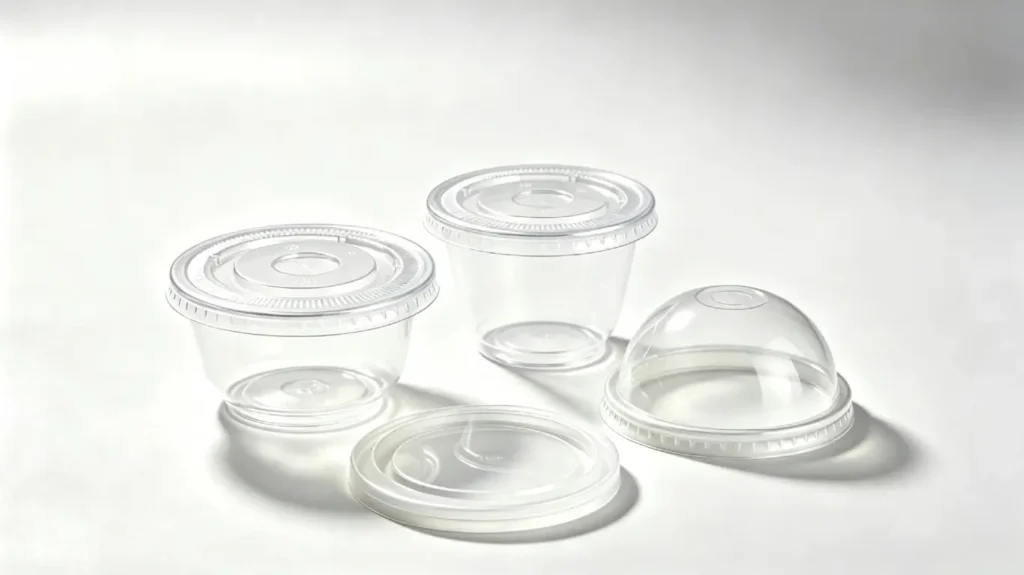

Suitable for:Cup Lids、PET Lids、Container Lids、Flat & Dome Lids
Suitable for:Blueberry Containers、Strawberry Boxes、Tomato Containers、Fruit Clamshells
Suitable for:Electronics Packaging、Medical Packaging、Cosmetic Packaging、Retail Blister Packs
Trusted Plastic Packaging Machinery Manufacturer With 24+ Years Of Industry Experience
24+ Years Experience
24+ years specializing in plastic cup machines, thermoforming machines and sheet extrusion lines.
CE Certified
All machines are manufactured according to international quality standards.
Turnkey Solutions
Complete production line including machine, mold, auxiliary equipment and training.
Global Installation
Remote support and overseas engineer service available.
Spare Parts Support
Long-term spare parts supply and technical support.
Custom Design
Customized solutions according to product size, output and material.
Turnkey Plastic Packaging Production Lines For Cups, Containers, Trays And Blister Packaging
Sheet Extrusion Line + Cup Thermoforming Machine + Cup Stacking Machine + Cup Packaging Machine + Chiller + Air Compressor+Mold
Sheet Extrusion Line+Thermoforming Machine+Chiller + Air Compressor+Mold

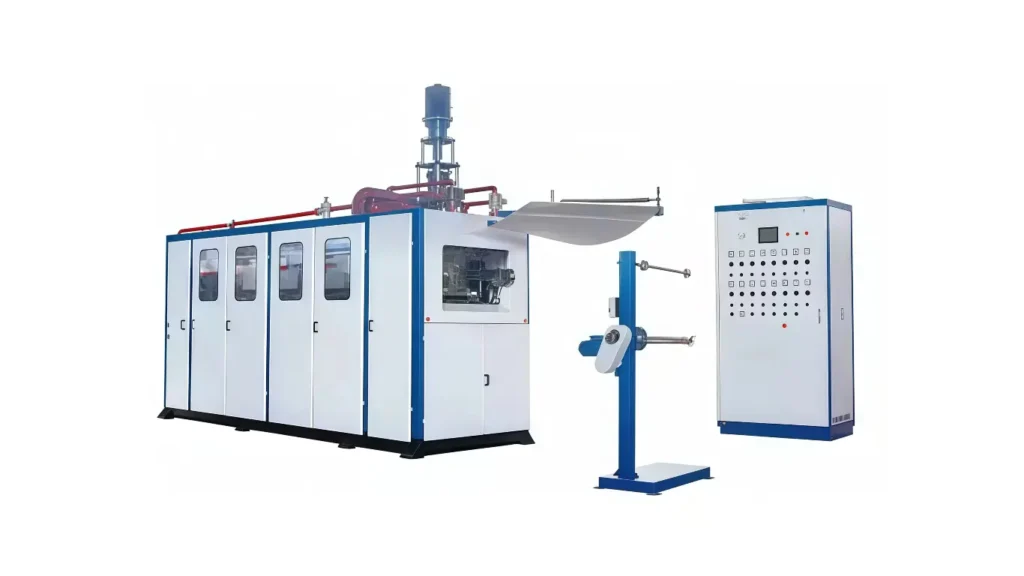

Produce disposable cups, drinking cups, jelly cups and dairy cups with high speed servo-driven production.

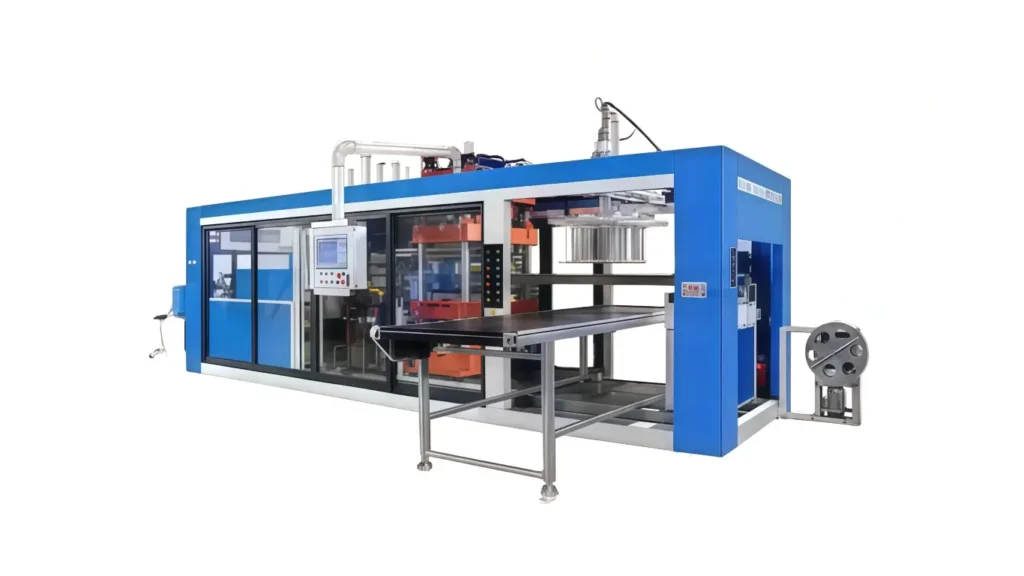

Suitable for food containers, lunch boxes, trays and takeaway packaging production.

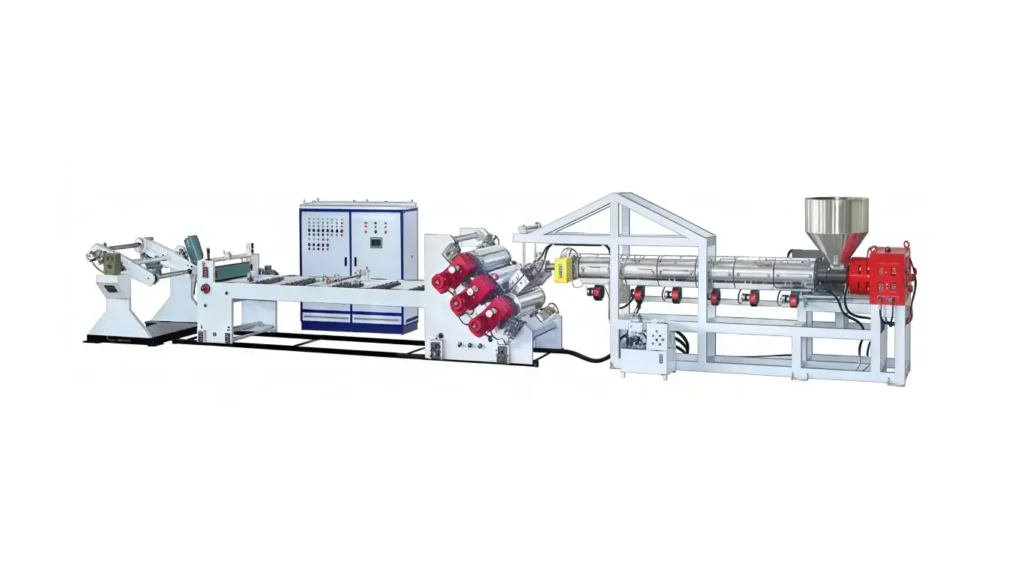

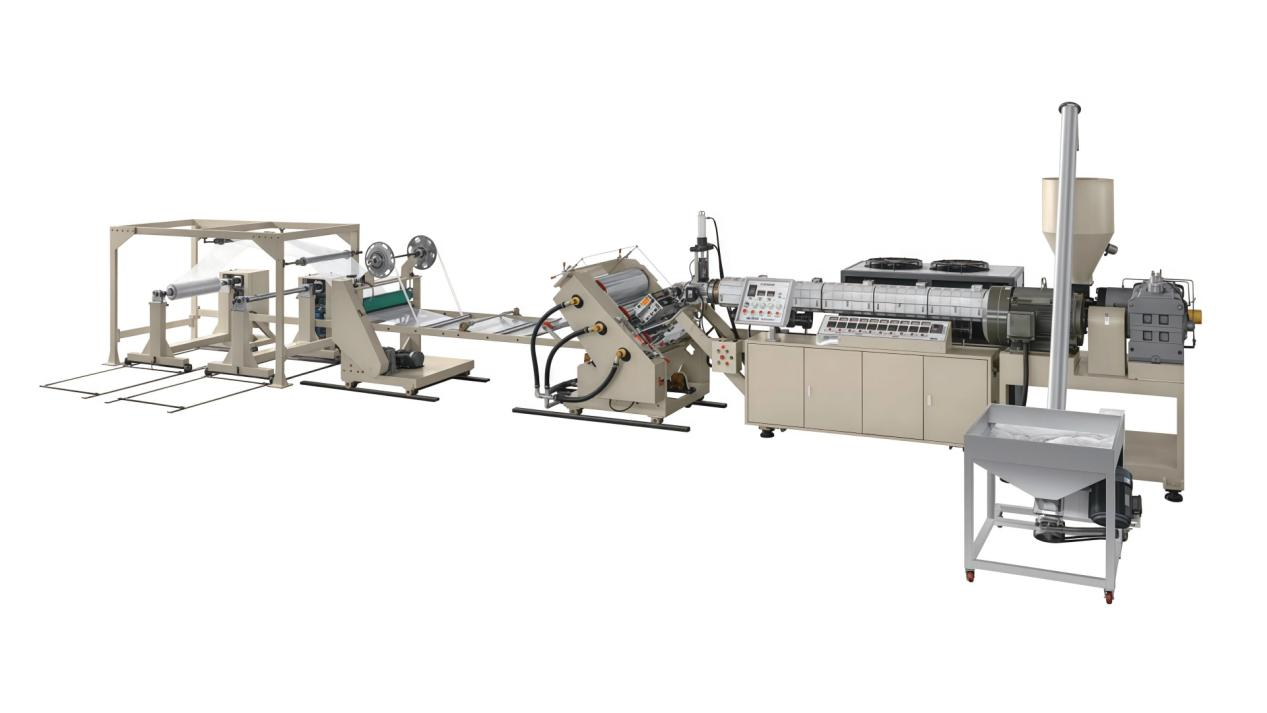

Stable sheet production for thermoforming and vacuum forming applications.

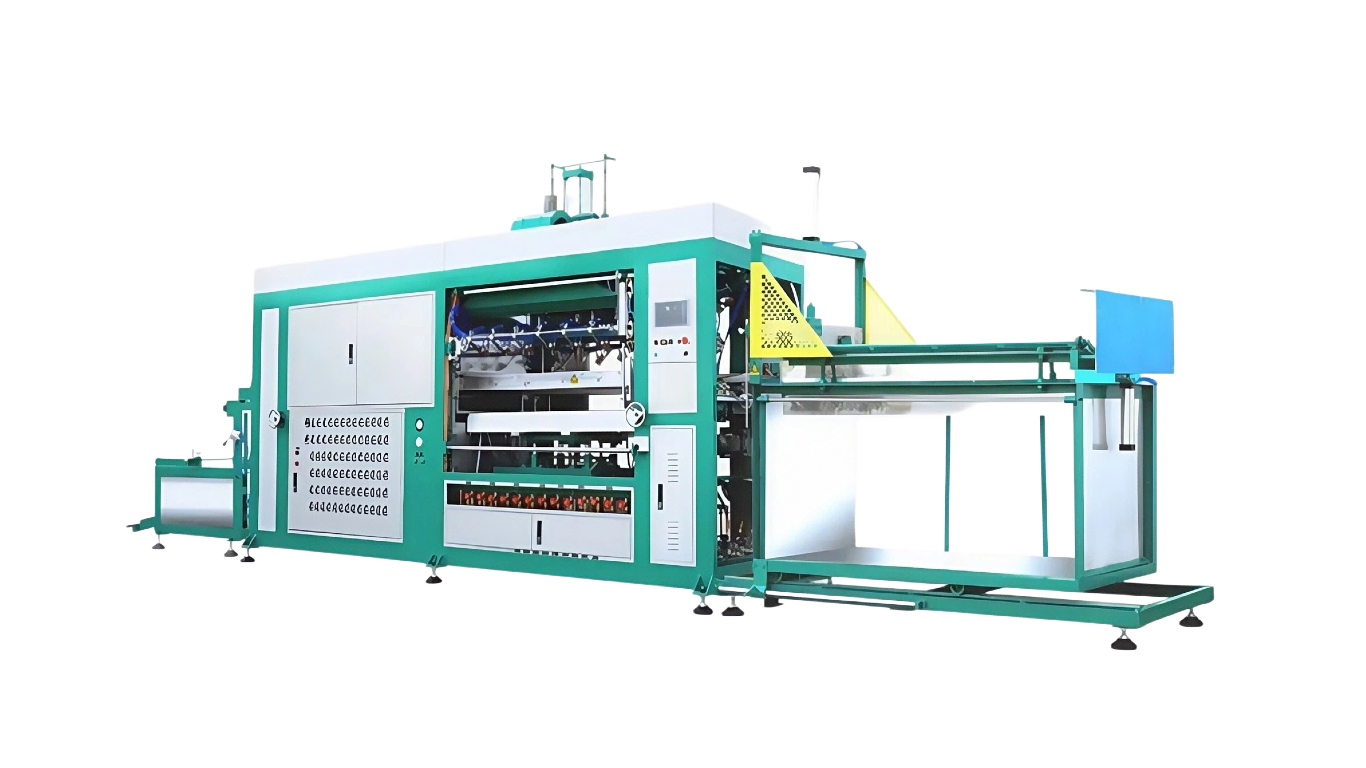

Designed for food trays, fruit containers, egg trays and disposable packaging production.

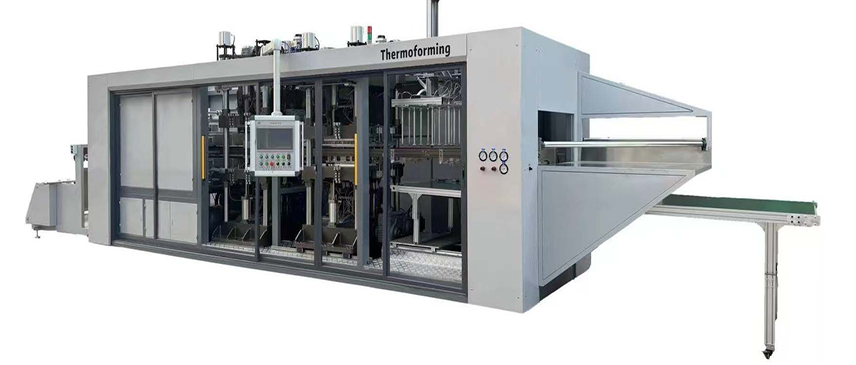

Designed for stable high-speed production with easy operation and low maintenance requirements.
| Model | WHX-660 | WHX-720 | WHX-750 | WHX-850 |
|---|---|---|---|---|
| Mould Size(Max) | 660*320mm | 730*420mm | 750*480mm | 850*530mm |
| Forming Depth(Max) | 150mm | 180mm | 220mm | 220mm |
| Sheet Thickness | 0.3-2.0mm | 0.3-2.5mm | ||
| Forming Speed(Max) | 29times/min | 30times/min | ||
| Air Pressure | 0.6-1.0mpa | |||
| Air Consumption | 4200-5000L/min | |||
| Water Consumption | 60-70L/min | |||
| Sheet Width(Max) | 690mm | 730mm | 760mm | 850mm |
| Suitable Sheet | PP,PS,PET,PVC,PLA,PE | |||
| Power Supply | AC380V,50Hz,Three-phase,Four-wire | |||
| Rated Power | 7.5kw | 7.5kw | 15kw | 15kw |
| Heating Power | 95kw | 111.2kw | 146kw | 146kw |
| Dimension(mm) | 4200*2200*2700 | 4250*2250*2700 | 4300*2300*2800mm | 4500*2400*2800mm |
| Weight | About 6T | About 6.5T | About 7T | About 7T |
| Model | WHX-7161 | WHX-7185 |
|---|---|---|
| Mould Size(Max) | 710*610mm | 710*850mm |
| Forming Depth(Max) | 110mm | 120mm |
| Sheet Thickness | 0.15-2.0mm | 0.16-2.0mm |
| Forming Speed(Max) | 30times/min | |
| Air Pressure | 0.6-0.8mpa | |
| Air Consumption | 4.0m³/min | |
| Sheet Width(Max) | 760mm | |
| Suitable Sheet | PP，PS，PET，PVC，PLA，HIPS | |
| Power Supply | AC380V,50Hz,Three-phase,Four-wire | |
| Rated Power | 130kw | 130kw |
| Heating Power | 50-80kw | |
| Procedure | Heating-Forming-Cutting-Stacking | |
| Dimension | 9500*2100*2800mm | 9500*2200*3200mm |
| Weight | About 10T | About 11T |
| Model | WHX-1220 |
|---|---|
| Forming Size | 1220*710mm |
| Cooling System | Blower*2/Sprayer*10 |
| Vacuum Pump | 100m2 /hr. (4hp) |
| Rated Power | 35kw |
| Working Speed | 200-600times/hour |
| Power Supply | AC380V,50Hz,Three-phase,Four-wire |
| Dimension | 7200*2200*2400mm |
| Weight | About 3T |
| Model | WHX-105 | WHX-110 | WHX-120 |
|---|---|---|---|
| Suitable Sheet | PP,PS | ||
| Sheet Width (Max) | 780mm | ||
| Sheet Thickness | 0.2-2.0mm | ||
| Screw Rod Dia | 105mm | 110mm | 120mm |
| Max Output | 180kg/hour | 220kg/hour | 250kg/hour |
| Main Motor Power | 150kw | ||
| Power Supply | AC380V,50Hz,Three-phase,Four-wire | ||
| Dimension(mm) | 16000*3500*2700 | 16500*3500*2900 | 17000*3500*3100 |
| Weight | About 10T | About 12T | About 13T |
Overseas Installation & Technical Support
Professional manufacturer of plastic thermoforming machines and extrusion lines for global packaging factories.
One-Stop Production Line Solution
Complete solutions including machines, molds, extrusion lines, and auxiliary equipment.
Customized molds based on product samples, drawings, or packaging requirements.
Strict Machine Testing Before Delivery
Every machine is fully tested before delivery to ensure stable operation.
Professional manufacturer of plastic thermoforming machines and extrusion lines for global packaging factories.
From equipment selection to stable production, we provide long-term, global technical support to keep your factory running smoothly.
⚙️ Pre-Sales Partnership Free production capacity assessment and customized machine matching based on your factory needs.
🔍 Transparency During Sales Live video inspections and full support for 3rd-party quality testing before shipment.
🛡️ Ironclad Warranty Includes a 1-Year Full Warranty backed by lifetime technical support and reliable spare parts supply.
🌍 Global Engineering Support Access to 24/7 online troubleshooting, step-by-step installation videos, and on-site overseas engineer deployment.
Tell us your production requirements and our engineers will recommend the suitable machine solution for your factory.
