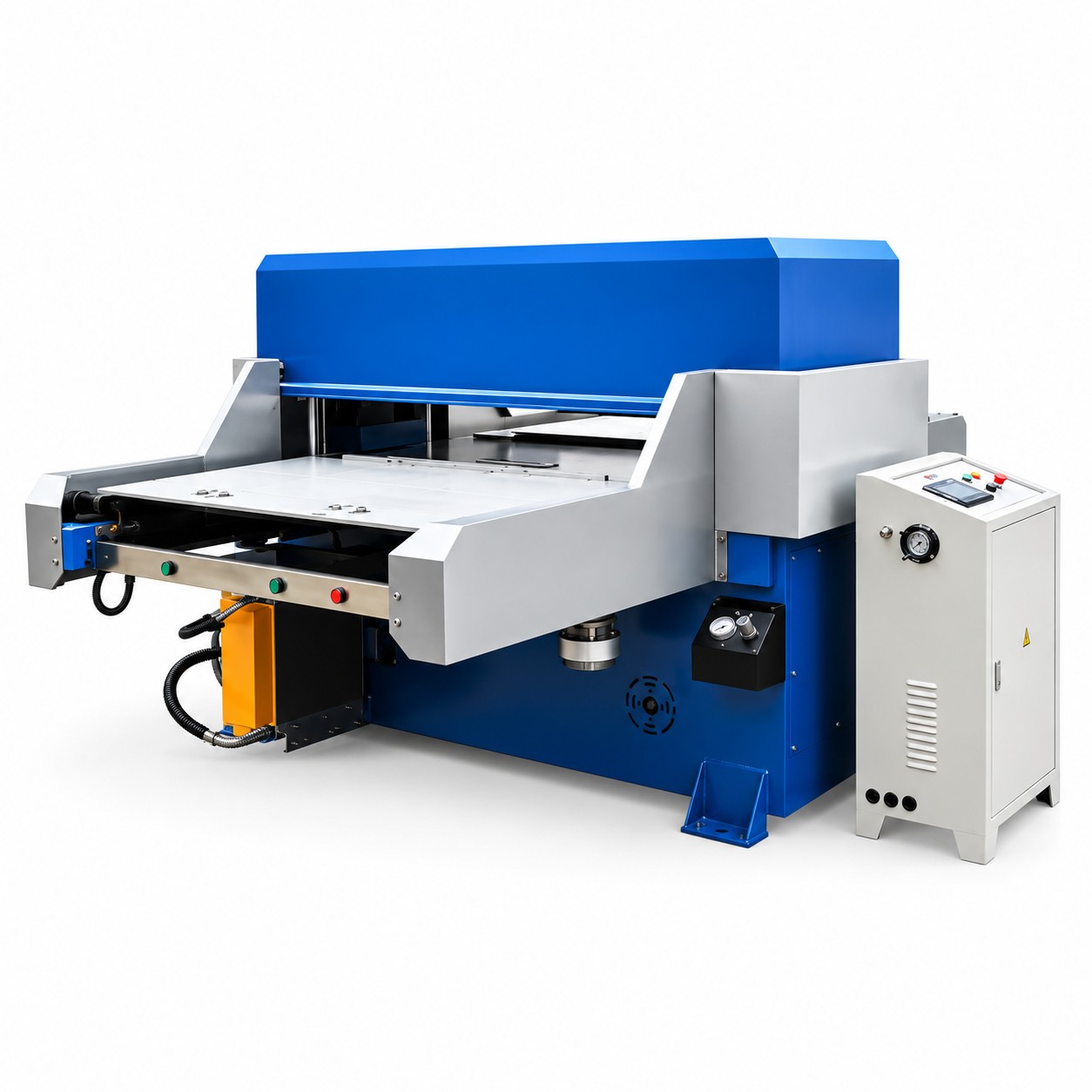

Engineered for heavy-duty packaging operations and thick-sheet thermoformed parts, the VihoX-120FP delivers 120 metric tons of certified downward cutting force across an 810 × 1400 mm bed. Powered by a high-torque 11 kW motor, this massive 6.3-ton machine cuts through high-resistance polymers, deep-cavity industrial trays, automotive sound-deadening panels, and dense multi-layer barrier sheets in a single stroke. Its front infeed table facilitates fast sheet handling, while balanced dual hydraulic cylinders guarantee absolute platen levelness.
| Specification Parameter | Engineering Value (VihoX-120FP) | Production Advantage & Technical Impact |
|---|---|---|
| High-Tonnage Shearing Force | 120 T (Metric Tons) | Easily cuts extensive perimeter dies (up to 40 meters) across tough polymers like APET, HDPE, ABS, and polycarbonate. |
| Full-Sheet Table Envelope | 810 × 1400 mm | Matches large thermoforming machine output dimensions, enabling entire formed sheets to be cut in a single stroke. |
| Platen Stroke Travel | 50–240 mm | Broad stroke range accommodates tall thermoformed shapes and deep blister parts with generous clearance. |
| Vertical Daylight Clearance | Approx. 50–240 mm | Wide daylight opening allows convenient tool installation, maintenance access, and rapid sheet loading. |
| High-Power Electric Drive | 11 kW | Heavy-duty electric drive delivers high hydraulic flow for fast cycle times and powerful shearing pressure. |
| Sheet Feeding Mechanism | Front Infeed Bed | Smooth front feeding table facilitates easy manual sheet insertion; automatic conveyor infeed can be integrated. |
| Workplace Safety Guards | Optical Light Curtain | Standard front-mounted infrared safety light curtains immediately halt machine motion if light paths are broken. |
| Chassis Net Weight | Approx. 6300 kg | Massive machine mass damps hydraulic shock impulses, ensuring sustained platen alignment and long tool life. |
| Chassis Dimensions | Approx. 3000 × 2300 × 1570 mm | Built for heavy industrial duty in continuous, high-volume thermoforming packaging manufacturing plants. |
The VihoX-120FP is built upon an extra-heavy steel frame fabricated from heavy-gauge structural plates and fully stress-relieved to prevent deflection under sustained 120-ton loads. Four precision-machined, chrome-plated guide pillars guide the moving platen. A synchronized mechanical balancing system ties the hydraulic rams together, ensuring balanced pressure distribution across the entire cutting surface.
The 11 kW hydraulic power pack features dual-stage high-and-low pressure pump circuits. Rapid approach speed transitions smoothly into high-pressure cutting, followed by instantaneous breakthrough cushioning. This controlled deceleration prevents cutting die dulling and protects high-density nylon cutting boards from deep gouging.
Factory floor demonstration showing the VihoX 120T full-platen hydraulic cutting press cleanly parting heavy thermoformed sheet packaging.
The VihoX-120FP handles heavy-tonnage finishing downstream of large-format thermoformers:
The 120FP is needed when total die perimeter knife length exceeds 35 meters, when cutting thick polymers over 2 mm, or when blanking tough materials like HDPE and ABS.
The larger 11 kW power unit provides higher hydraulic pump displacement, allowing faster platen descent and quick pressure recovery during continuous shifts.
Yes, the 120-ton capacity cuts heavy automotive carpets, door panel substrates, soundproofing felt, and dense composite plastics with clean edges.
Proportional hydraulic dampening valves absorb breakthrough energy when knives slice through tough stock, preventing shock from transferring to the frame.
An integrated automatic pump injects grease into all guide pillar bushings at scheduled intervals, with digital pressure sensors alerting operators to low grease levels.
The console includes optical light curtains, dual interlocked start buttons, emergency stops, and low-voltage control circuits (24V DC).
The hydraulic reservoir holds approximately 200 liters of premium anti-wear hydraulic oil (ISO VG 46).
Yes, our factory can engineer custom platen widths, depths, and extended daylight clearances to match specialized customer tooling requirements.
