The VihoX 1220×710 Fully Automatic Servo Vacuum Forming Machine is our flagship heavy-duty thermoforming installation engineered for high-throughput mass conversion of food containers, medical trays, and industrial blister packaging. Boasting an expansive maximum forming area of 1220×710 mm and an extra-deep forming depth of 180 mm, this system processes roll-fed materials up to 750 mm wide across calipers from 0.10 mm to 2.0 mm.
Driven by high-precision AC servo motors across sheet indexing and platen strokes, the machine integrates automatic roll feeding, 35 kW zoned ceramic infrared heating, negative-pressure vacuum forming, whole-sheet inline cutting, and automatic product discharge. Supporting sustainable polymers including PLA and corn-starch blends alongside conventional PP, PE, APET, PVC, PETG, PS, ABS, and EPS, the VihoX 1220×710 operates at high speeds of 6 to 20 cycles/min (typical running power 22–37 kW), establishing a new benchmark in large-format thermoforming productivity.

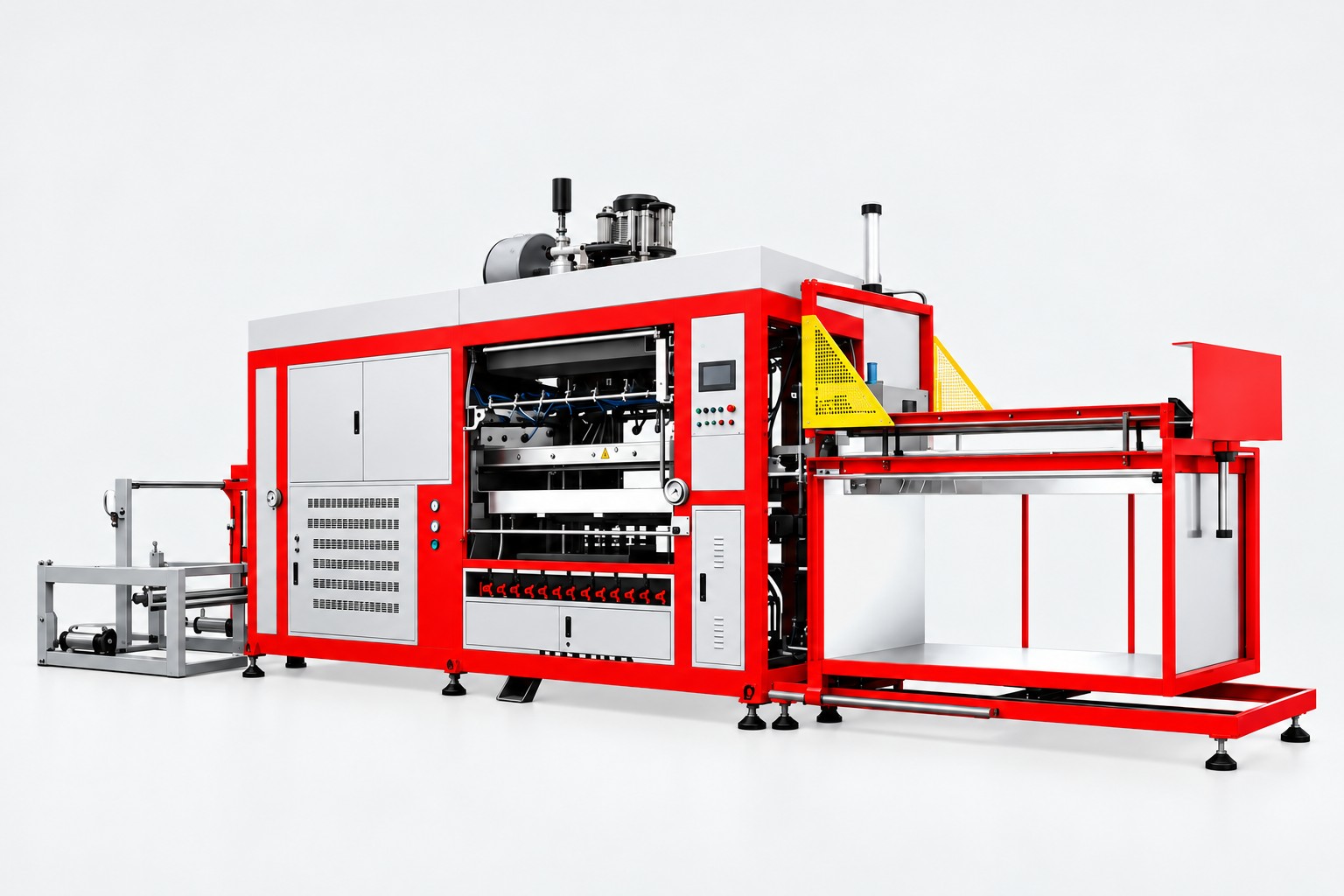

Factory trial run: VihoX 1220×710 Fully Automatic Servo Vacuum Forming Machine
| Industrial Servo Metric | Heavy-Duty Specification | Commercial Factory Value |
|---|---|---|
| Machine Category | Fully Automatic Servo Vacuum Forming Machine | Full-servo motion architecture maximizing speed and position accuracy |
| Automation Level | Fully Automatic | Fully integrated continuous production from roll feed to product stack |
| Standard Workflow | Auto Feeding + Zoned Heat + Vacuum Form + Whole Cut + Auto Discharge | Eliminates secondary trimming operations and manual handling errors |
| Processable Materials | PLA / Corn Starch / PP / PE / APET / PVC / PETG / PS / ABS / EPS | Universal polymer versatility spanning eco-plastics and engineering resins |
| Maximum Forming Area | 1220 × 710 mm | Massive forming bed accommodating high multi-cavity layout density |
| Roll Sheet Width | Approx. ≤ 750 mm (Configured by Direction) | Matches standard roll stock widths from VihoX multi-layer extrusion lines |
| Sheet Thickness Range | 0.10 – 2.0 mm | Exceptional range from ultra-thin clear packaging to rigid barrier trays |
| Max Forming Depth | 180 mm | Extra-deep draw capacity suited for deep lunch boxes and industrial tubs |
| Max Sheet Roll Diameter | Confirmed by Roll Feeder Configuration | Heavy pneumatic cantilever unwind stand with automatic tension brake |
| Heating Method & Load | Ceramic Heating Bricks, 35 kW | Independent multi-zone matrix offering precise micro-thermal zoning |
| Drive Motor System | Servo Driven; Total Power 52 kW (Typical 22–37 kW) | High kinetic efficiency returning up to 30% electrical energy savings |
| Vacuum System Architecture | External Vacuum System | Engineered for high-volume vacuum reservoirs and central factory lines |
| Vacuum Pump Capacity | 100 – 200 m³/h Reference | Ultra-fast vacuum surge evacuating massive 1220×710 mold cavities |
| Working Air Pressure | 0.7 MPa | High pneumatic stability maintaining robust clamping forces |
| Cooling Water Demand | Confirm by Tooling Configuration | High-flow mold base cooling channels for rapid temperature drops |
| Production Cycle Speed | 6 – 20 cycles/min | High mechanical productivity reaching up to 1,200 forming shots/hour |
| System Control Method | PLC + HMI + Full Servo Motion Control | Synchronized multi-axis servo positioning with recipe memory |
| Power Supply Standards | 380V / 50Hz / 3 Phase (Customizable) | Export adaptations for 220V, 415V, or 480V worldwide power grids |
| External Dimensions | Approx. 7200 × 1780 × 2500 mm | Heavy integrated production gantry with safety enclosure interlocks |
| Machine Total Weight | Approx. 3000 kg (3 Metric Tons) | Massive structural rigidity eliminating chassis deflection under high loads |
| Target Packaging Lines | Lunch Boxes, Trays, Dishes, Bowls, Lids, Medical Blisters, Industrial Packaging | Comprehensive coverage for retail packaging and heavy industrial shells |
The standout mechanical capability of the VihoX 1220×710 is its massive forming area. Operating on a 1220×710 mm platen footprint, packaging converters can layout 20 to 32 cavities for standard meal trays or deli clamshells per stroke. With 180 mm of vertical forming depth and servo-driven upper plug assist options, wall thickness distribution remains remarkably uniform even in steep 90-degree container sidewalls and deep industrial tool tray cavities.
Traditional pneumatic-only forming lines suffer from air pressure drops, slow cycling, and high compressed air energy consumption. The VihoX 1220×710 replaces high-maintenance pneumatic plungers with closed-loop AC servo drives for sheet chain advancement and mold clamping strokes. Servo acceleration curves are digitally contoured to eliminate web jerking, allowing delicate pre-heated PLA and bio-polymers to index without stretching out of register. While total connected electrical power is 52 kW, typical operational consumption averages only 22–37 kW thanks to dynamic regenerative braking circuits.
The VihoX 1220×710 represents a true turnkey workhorse for modern plastic packaging factories:
Servo drives provide micrometer position repeatability and smooth acceleration ramps, eliminating mechanical shock, minimizing sheet thinning, and tightening perimeter cut tolerances.
Yes. The 35 kW ceramic heating matrix features sensitive multi-zone temperature regulation, providing the precise, gentle heating curves required by temperature-sensitive bio-based polymers.
Operating at 15 cycles/min with an 18-cavity container mold, the line outputs approx. 16,200 finished containers per hour, yielding over 120,000 units per standard 8-hour shift.
We recommend a heavy-duty vacuum system with a displacement rate of 100 to 200 m³/h coupled with a large surge vacuum tank to evacuate the 1220×710 mm cavity within fractions of a second.
After forming, the sheet moves into the servo cutting station where all cavities are punched cleanly in a single stroke, and finished containers drop automatically onto the collection conveyor.
A standard 80–100 kVA factory power drop easily accommodates the 52 kW total installed rating, with typical operating consumption stabilizing around 22–37 kW.
The machine frame measures approx. 7200×1780×2500 mm. An overall operating clearance of 10×4 meters is recommended for raw material roll staging and finished pallet stacking.
VihoX dispatches experienced mechanical and electrical engineers worldwide for complete on-site leveling, power wiring, mold installation, parameter tuning, and operator certification.
Speak directly with our senior thermoforming division for container CAD designs, high-cavity mold quotes, and complete plant layout planning.
