The VihoX 610×560 Semi-Automatic Thin-Sheet Vacuum Forming Machine is engineered for packaging converters and container manufacturers seeking a dependable, low-capital production solution for thin-wall thermoformed goods. Featuring an optimized forming area of 560×610 mm and forming depths up to 130–150 mm, this machine processes roll-fed thermoplastic materials including PP, PET, PS, BOPS, HIPS, PVC, and bio-based PLA across sheet thicknesses from 0.15 mm to 2.5 mm.
Operating with roll-fed automated sheet advancement coupled with manual assistance for finished part offloading and trimming, the line utilizes a 12 kW infrared ceramic heating brick array for uniform thermal absorption. With cycling speeds reaching 1 to 15 cycles/min, simple manual switch controls, and low 1 kW drive motor power, the 610×560 semi-automatic model delivers exceptional commercial value for producing bakery cake domes, deli fruit boxes, fast-food meal trays, and medical packaging inserts.

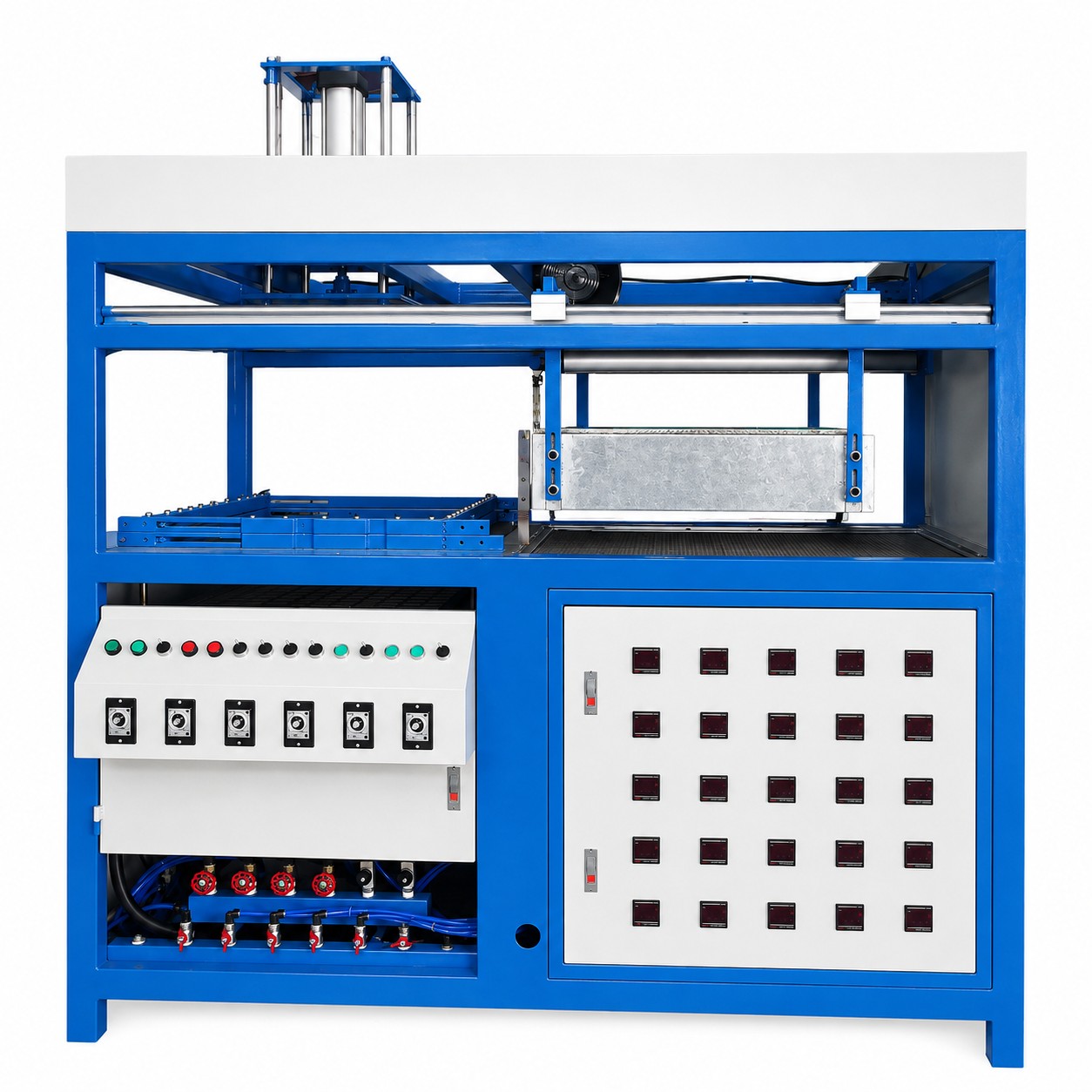

Factory trial run: VihoX 610×560 Semi-Automatic Vacuum Forming Machine
| Technical Specification | Manufacturer Rating | Production Advantage |
|---|---|---|
| Machine Category | Semi-Automatic Thin-Sheet Vacuum Former | Combines automated sheet feeding with operator-assisted collection |
| Automation Level | Semi-Automatic | Straightforward maintenance with minimal electronic complexity |
| Working Process | Roll Feeding, Heating, Vacuum Forming; Manual Assistance | Flexible workflow accommodating varied mold cavity configurations |
| Processable Polymers | PP / PET / PS / BOPS / HIPS / PVC / PLA | Wide processing window across general and biodegradable resins |
| Maximum Forming Area | 560 × 610 mm | Spacious forming bed for multi-cavity food containers and clamshells |
| Roll Sheet Width | Approx. ≤ 680 mm (Reference) | Compatible with rolls from VihoX sheet extrusion lines |
| Sheet Thickness Range | 0.15 – 2.5 mm | Handles thin clear lids up to heavy industrial blister trays |
| Maximum Forming Depth | 130 – 150 mm | Generous draw depth for deep cake domes and meal containers |
| Max Sheet Roll Diameter | 680 mm | Extended run time between roll changes on continuous unwinder |
| Heating Method & Power | Ceramic Heating Bricks, 12 kW | Far-infrared radiant heating ensuring deep, even polymer penetration |
| Main Drive Motor Power | 1 kW | Ultra-low operating electrical draw keeping factory energy bills minimal |
| Vacuum System Interface | External Vacuum System | Connects to central factory vacuum piping or dedicated pump set |
| Vacuum Pump Capacity | 20 – 40 m³/h Reference | Rapid evacuation rate ensuring crisp corner definition on deep draws |
| Working Pneumatic Pressure | 0.7 MPa | Standard shop air line pressure for pneumatic clamping frames |
| Cooling Water Demand | Approx. 5 L/min (15–20°C) | Modest chiller requirement facilitating fast mold turnaround |
| Cycle Speed | 1 – 15 cycles/min | Adaptable speed curve depending on resin thickness and part cooling |
| Operational Control | Manual Switch Control | Rugged industrial pushbuttons with thermal regulation dials |
| Power Supply Voltage | 3P AC380V / 50–60Hz | Standard 3-phase industrial power with export voltage adaptations |
| Equipment Dimensions | Approx. 1600 × 1000 × 2000 mm | Compact vertical frame easily installed in tight production areas |
| Machine Weight | 600 kg | Heavy welded box steel chassis absorbing clamping pneumatic impacts |
| Target Packaging Products | Food Trays, Cake Boxes, Fast-Food Boxes, Medical Inserts | High versatility for short, medium, and custom seasonal runs |
The heating platen on the VihoX 610×560 semi-automatic machine incorporates multiple high-density ceramic heating bricks delivering balanced infrared emission across the entire 560×610 mm forming window. Each heating zone is individually calibrated via front-panel temperature controls, eliminating cold perimeter spots and preventing sheet sagging during the pre-heat dwell. When the mold ascends, high-flow vacuum ports instantly evacuate air from the tool cavities, pulling the softened plastic tightly against micro-vented mold surfaces for razor-sharp product details.
For packaging start-ups and regional factories looking to expand beyond third-party container purchasing, the 610×560 semi-automatic vacuum former represents an ideal entry machine. Operating with straightforward manual switch controls rather than complex computer networks, maintenance can be performed by standard shop technicians. Mold changes take under 30 minutes, allowing operators to switch rapidly between bakery blister lids, lunch box containers, and pharmaceutical ampoule trays.
The 680 mm maximum roll width of this vacuum former pairs directly with roll stock produced by our in-house extrusion lines:
The semi-automatic model uses roll feeding and automated vacuum forming but requires manual operator assistance for part removal and secondary trimming, whereas the fully automatic model includes integrated cutting and automated stacking.
Yes. By adjusting the ceramic heating dwell time and temperature zones, the machine easily accommodates the broad thermal processing requirements of both polypropylene and polyester films.
The customer must supply a 380V 3-phase electrical connection, an external vacuum pump or central vacuum line (20–40 m³/h), a 0.7 MPa compressed air supply, and chilled cooling water at 5 L/min.
The platen accepts cast aluminum, CNC-machined aluminum, porous resin, and epoxy tooling. Wood or plaster molds can also be mounted for rapid prototype proofing.
A heavy-duty pneumatic clamping frame secures the sheet perimeter against the seal gasket, preventing vacuum leakage and maintaining web tension while heating bricks descend.
For 0.4–0.6 mm PET or PS deli trays, typical forming cycles average 4 to 8 cycles per minute including heating, vacuum draw, air-blast cooling, and manual offloading.
The machine weighs 600 kg and occupies approx. 1600×1000×2000 mm. It is secured inside a fumigated plywood crate with moisture barrier film for safe LCL or FCL container transport.
VihoX provides complete 3D container design, mold manufacturing, pre-shipment vacuum sample testing, and sends video confirmation before equipment dispatch.
