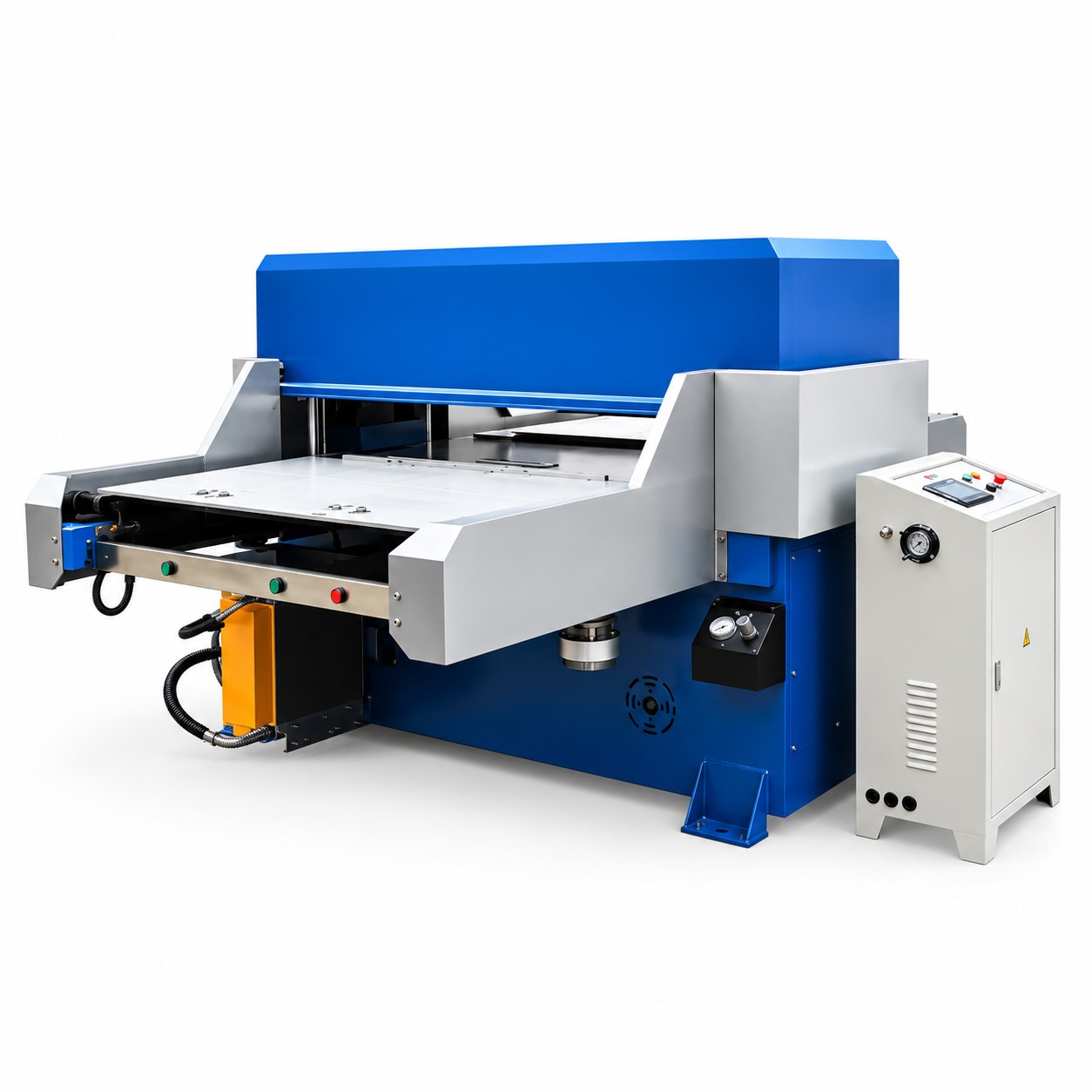

Delivering a certified 100 metric tons of precision downward clamping force across an 810 × 1400 mm cutting bed, the VihoX-100FP is built for high-volume packaging converters operating multi-cavity thermoforming lines. Equipped with a heavy 5.5-ton chassis and front loading table, the 100FP shears entire thermoformed webs in a single stroke. It easily overcomes the high blade resistance of dense multi-cavity food containers, rigid APET fruit punnets, and thick blister packaging cards with zero platen deflection.
| Specification Parameter | Engineering Value (VihoX-100FP) | Production Advantage & Technical Impact |
|---|---|---|
| Peak Blanking Capacity | 100 T (Metric Tons) | Handles extensive die knife perimeters (up to 30–35 meters) across tough polymers like APET, RPET, and heavy PP. |
| Full-Platen Table Envelope | 810 × 1400 mm | Matches large thermoforming mold dimensions, enabling single-stroke finishing of entire formed packaging sheets. |
| Working Stroke Range | 50–240 mm | Provides wide travel flexibility for deep-draw thermoformed trays and thick multi-sheet stacks. |
| Daylight Platen Gap | Approx. 50–240 mm | Generous daylight opening ensures easy tooling installation and clear overhead access for sheet loading. |
| Main Drive Power | 7.5 kW | Heavy-duty electric motor delivers rapid hydraulic flow for high-speed cycle times and fast platen return. |
| Infeed Table Layout | Front Material Feeding Bed | Ergonomic front table streamlines manual sheet infeed; motorized conveyor feed options are fully supported. |
| Safety Protection Standard | Optical Safety Light Curtain | Front-mounted infrared safety curtains immediately halt downward platen movement if light beams are broken. |
| Massive Frame Weight | Approx. 5500 kg | Substantial machine mass damps hydraulic vibrations and maintains platen parallelism across high-speed shifts. |
| Physical Dimensions | Approx. 3000 × 2300 × 1570 mm | Heavy industrial construction designed for continuous 24/7 duty in demanding packaging production plants. |
The structural frame of the VihoX-100FP is cast from heavy-gauge alloy iron and reinforced with internal ribbing to withstand continuous 100-ton hydraulic shocks. Four ground, hard-chromed pillar columns maintain strict vertical alignment. Mechanical balancing shafts synchronize hydraulic cylinders at both ends of the platen, guaranteeing consistent cutting depth across all 1400 mm of bed width.
A high-efficiency 7.5 kW motor drives a high-pressure hydraulic circuit equipped with proportional pressure relief valves. Breakthrough shock absorption cushions the platen at the instant of material parting, protecting cutting knife teeth and extending the operating life of high-density nylon cutting pads.
Factory test run showing the VihoX 100T full-platen hydraulic cutting press shearing multi-cavity thermoformed packaging.
The VihoX-100FP operates as the primary blanking unit in large-scale thermoforming operations:
With 100 tons of hydraulic force, the 100FP easily cuts dies with total rule lengths reaching 30–35 linear meters, depending on sheet thickness.
The balanced four-column design and mechanical synchronization shafts ensure platen parallelism within 0.03 mm, delivering equal pressure across the entire bed.
Yes, the high tonnage and rigid platen structure provide clean, burr-free cuts on tough, brittle polyester materials without stress-whitening edges.
Yes, the automatic lubrication pump delivers oil to all four column sleeves at preset intervals and includes a low-level warning buzzer.
The machine is built in accordance with CE machinery directives, featuring dual-channel safety relays, light curtains, and emergency stops.
Yes, custom pneumatic sheet grippers and positioning stops can be added to the infeed table to speed up sheet alignment.
The reservoir holds approximately 160 liters of premium anti-wear hydraulic oil (ISO VG 46).
We provide detailed video setup guides, electrical schematics, foundation drawings, and remote technical support via WhatsApp and video calls.
Need heavy-tonnage full-sheet blanking for your thermoforming factory? Contact VihoX engineering today to evaluate your die perimeter requirements and receive direct factory pricing.
