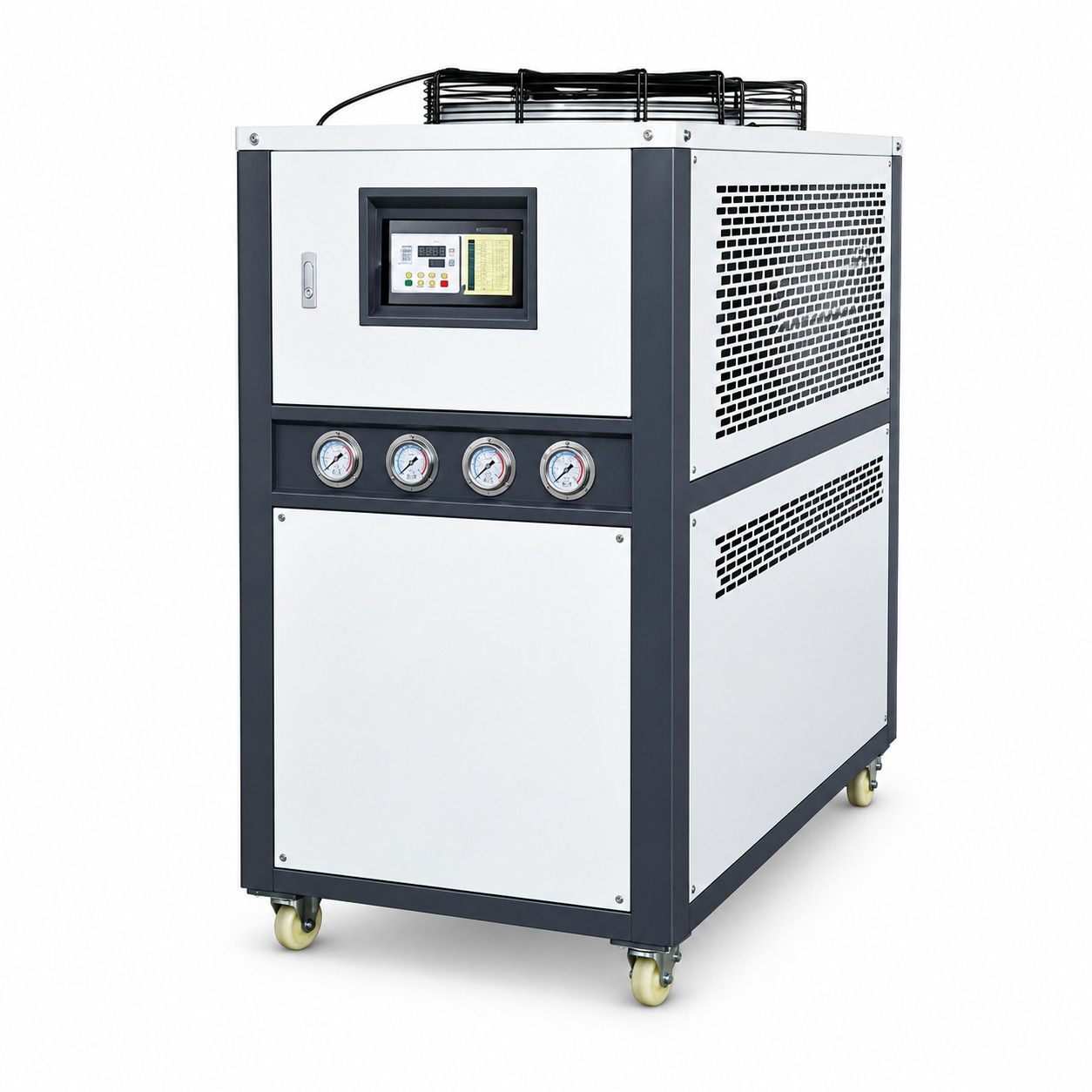

The VihoX-10AC 10HP air-cooled industrial water chiller is built for heavy-duty thermal regulation across high-output cup making machinery and compact multi-station blister formers. Packing 28.5 kW (24,510 kcal/h) of cooling capacity and a 9.08 kW scroll compressor, this unit easily absorbs intense thermal loads from multi-cavity drink cup molds running continuous 30+ cycles per minute. Its large 200-liter SUS304 stainless steel buffer reservoir dampens cooling water temperature spikes during rapid mold open/close intervals.
Featuring dual independent refrigeration safety monitoring and four front-mounted process pressure gauges, the VihoX-10AC delivers total operational visibility. An internal pump circulating 4.89 m³/h through DN32 ports ensures high-velocity turbulent flow inside mold cooling channels, preventing hot spots and uneven cup wall shrinkage. Condenser heat rejection of 10,000 m³/h via dual overhead axial fans maintains high energy efficiency ratios even during peak summer ambient plant temperatures.
Before export clearance, the VihoX 10HP industrial chiller undergoes comprehensive pre-shipment quality auditing. We benchmark continuous 28.5 kW heat extraction rates, check high-pressure cut-off trip accuracy under throttled air conditions, and log pump head delivery through DN32 headers. The video below showcases our factory assembly and live run testing:
All technical ratings outlined in the following specification schedule are verified under standard testing benchmarks of 7°C leaving water and 35°C ambient air conditions. The standard electrical configuration operates on 380V 3Ph 50Hz, with worldwide voltages built to order.
| Engineering Property | Audited Factory Capacity | Workshop Operational Value |
|---|---|---|
| Product Model & SKU | VihoX-10AC | Heavy-duty VihoX auxiliary process chilling installation |
| Certified Cooling Rating | 28.5 kW / 24,510 kcal/h (8.10 RT) | Sustained high-output cooling across multi-cavity beverage cup dies |
| Compressor Drive System | 9.08 kW (Hermetic Scroll) | Industrial hermetic scroll delivering rugged 24/7 run reliability |
| Nominal Power Demand | 10.83 kW | High-efficiency motor design lowering monthly kWh utility bills |
| Stainless Reservoir Size | 200 L (SUS304 Stainless Steel) | Large 200L thermal buffer absorbing sharp mold opening surges |
| Fluid Delivery Velocity | 4.89 m³/h | Vigorous 4.89 m³/h circulation sustaining rapid cooling cycles |
| Internal Coolant Pump | 0.75 kW (20 m head) | Robust 0.75 kW pump overcoming backpressures in complex tooling |
| Fluid Intake & Discharge | DN32 | Industrial DN32 connection ensuring low header pressure loss |
| Condenser Fan Airflow | Approx. 10,000 m³/h | Dual-fan condenser assembly discharging 10,000 m³/h smoothly |
| Fluid Temperature Control | 5°C to 35°C (Accuracy ±1°C) | Digital temperature regulation matching high-speed polypropylene runs |
| Refrigerant Metering System | Thermostatic Expansion Valve | Heavy-duty expansion assembly maintaining optimal evaporator superheat |
| Standard Grid Voltage | 3Ph 380V / 50Hz (220V/415V/460V/60Hz Customizable) | Global industrial electrical compliance with certified components |
| Integrated Fault Safeties | High/Low Pressure, Overload, Overtemperature, Reverse Phase, Anti-Freeze, Water Flow Switch | Independent high/low refrigerant switches and liquid level interlocks |
| Machine Envelope & Weight | Approx. 1560 × 850 × 1500 mm | Approx. 450 kg | Heavy-gauge steel housing with visual quad pressure indicators |
| Target Machine Configuration | 1 larger cup making machine (such as VihoX-720, 750, or 850 series) or compact 3-station thermoformers | Recommended for VihoX-720, 750, 850 cup machines or compact 3-station units |
The VihoX-10AC is ideal for cooling high-capacity cup machines like the VihoX-720, VihoX-750, or VihoX-850-B/C, as well as compact 3-station thermoforming lines producing clamshell containers or cup lids.
The quad gauge cluster provides immediate visual readouts for refrigerant high pressure, refrigerant low pressure, water pump discharge pressure, and return loop pressure, allowing maintenance technicians to verify circuit balance at a glance.
The 200L reservoir acts as a thermal flywheel, storing a large reserve of chilled fluid that buffers against short-term temperature surges when large aluminum mold plates absorb heat from thick plastic sheets.
An integrated digital anti-freeze thermostat continuously monitors evaporator water temperature and cuts power to the compressor contactor if loop fluid drops below 2°C, preventing coil ruptures.
While primarily intended for indoor plant floor installation, it can be situated under an outdoor sheltered roof with adequate ventilation, provided electrical enclosures are protected from direct rain driving.
The internal water circuit features a cleanable Y-strainer before the pump intake; we recommend flushing the strainer screen monthly to maintain full 4.89 m³/h flow velocity through mold channels.
The unit employs an industrial fully hermetic scroll compressor, chosen for its 70% fewer moving parts, lower vibration harmonics, and superior tolerance to liquid refrigerant slugging compared to reciprocating designs.
Every VihoX-10AC ships with an English operation and maintenance manual, complete electrical schematics, CE declaration, and factory test inspection certificates.
