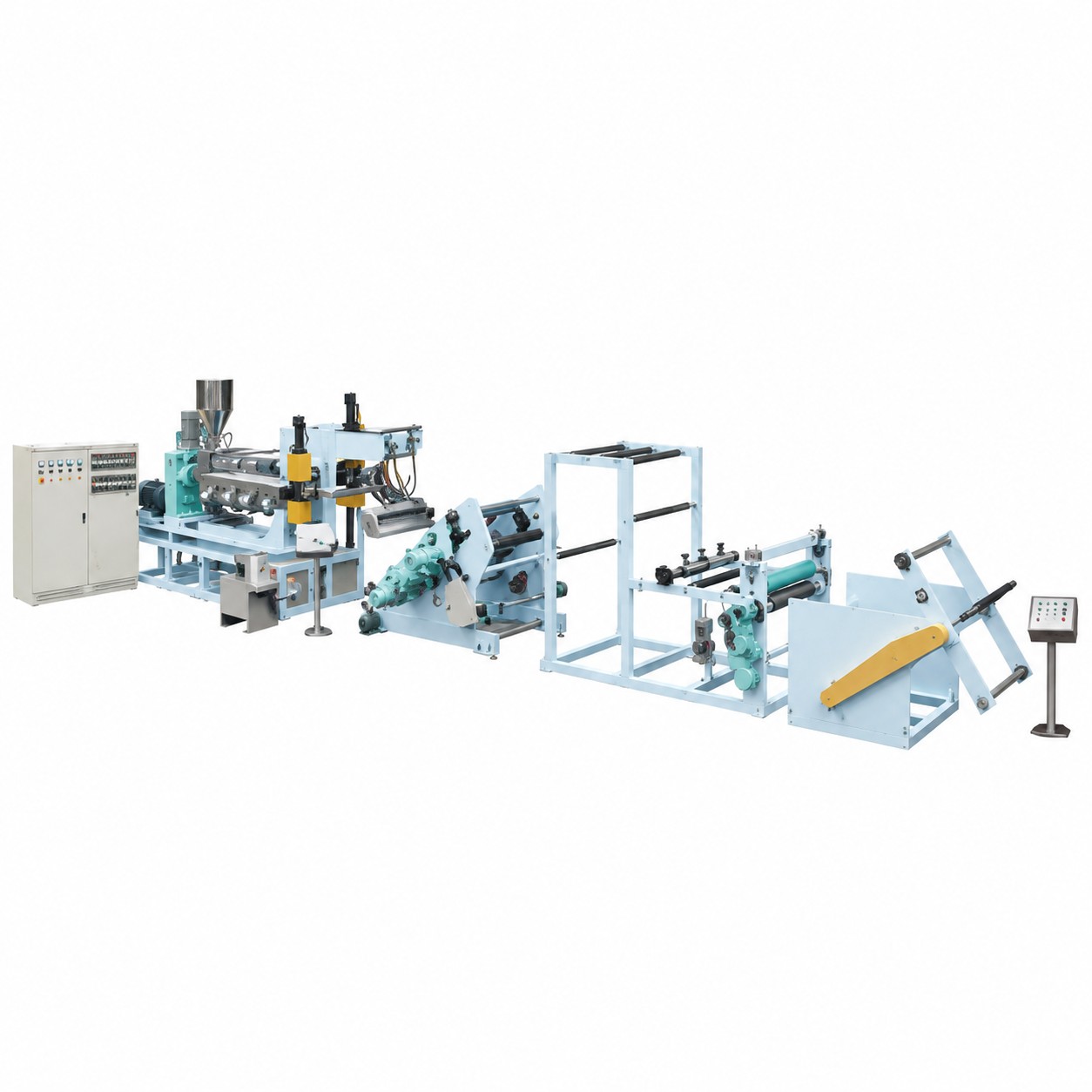

The VihoX 110+65 PP/PS Co-extrusion Sheet Line is engineered for converters seeking to produce high-value multi-layer barrier sheets, dual-color beverage cup stock, and cost-optimized packaging with recycled core layers (ABA structure). Combining a Φ110 mm primary extruder (approx. 55 kW motor) with a Φ65 mm auxiliary co-extruder, both featuring a 33:1 L/D ratio, this co-extrusion line delivers a steady output of approx. 200 kg/h.
Equipped with a specialized 2–3 layer adjustable co-extrusion feedblock, a 150CC precision melt metering pump, and a 1000 mm coat-hanger die, the system forms finished sheet widths from 500 to 880 mm. Sheet thickness ranges cover 0.3 mm to 2.0 mm for PP and 0.2 mm to 2.0 mm for PS. Web calibration and cooling are managed by a specialized three-roll stack (Φ350×1000×1 + Φ450×1000×2) driven by independent electric motors, achieving line speeds between 15 and 30 m/min with exceptional layer distribution accuracy.
Factory trial run: VihoX 110+65 PP/PS Co-extrusion Sheet Line Running Test
| Specification Item | Engineering Value | Operational Relevance |
|---|---|---|
| Suitable Resins | PP / PS / HIPS / PE | Dual-color sheet, virgin capping over recycled regrind, and barrier films |
| Screw Specifications | Φ110 mm + Φ65 mm Dual Extruders | Main extruder drives core layer; auxiliary extruder feeds skin layers |
| Length-to-Diameter Ratio | Approx. 33:1 L/D | Optimized residence time ensuring synchronized melt rheology |
| Sheet Structure / Layers | 2–3 Layers (AB / ABA) | Versatile feedblock vane adjustments for symmetrical or asymmetrical laminates |
| Finished Sheet Width | 500 – 880 mm | Directly compatible with VihoX-660, 720, and 750 cup forming machine beds |
| Sheet Thickness Range | PP: 0.3–2.0 mm; PS: 0.2–2.0 mm | High precision across both flexible polyolefins and rigid styrenics |
| Reference Hourly Output | Approx. 200 kg/h | Balanced throughput matching continuous multi-cavity thermoforming lines |
| Main Motor Power | Main ~55 kW + Aux by Config | Independent variable-speed inverter motors on both extruders |
| Total Installed Power | Approx. 150 kW | Efficient heating and drive distribution with PID microprocessor control |
| Actual Running Power | Approx. 80 kW | Low operating power consumption maximizing factory profit margins |
| Calender Roller Dimensions | Φ350×1000×1 + Φ450×1000×2 | Asymmetrical roll diameter stack optimizing cooling time and web wrap |
| T-Die Lip Width | 1000 mm | High-grade alloy coat-hanger die with adjustable deckles and thermal bolts |
| Production Line Speed | 15 – 30 m/min | High haul-off speed tailored for thin-gauge drinking cup sheet production |
| Roller Cooling Architecture | Circulating Water Cooling (Tower/Chiller) | Independent temperature zones maintaining roll surface consistency |
| Roller Drive Mechanism | Independent Motor Drive | Eliminates surface chatter and ensures flawless multi-layer adhesion |
| Melt Metering Pump | 150CC Precision Gear Pump | Maintains constant pressure at feedblock, preventing layer thickness drift |
| Winding Configuration | Two-Station Winding Unit | Dual-position turret winding with independent torque tension control |
| Electrical Utility Standard | 380V / 50Hz / 3-Phase | Customizable for 220V, 415V, or 480V worldwide electrical standards |
| Footprint Envelope | Approx. 12 × 2.0 × 2.5 m | Space-efficient co-extrusion layout fitting standard industrial factory bays |
| Machine Weight | Approx. 9.5 Metric Tons | Solid unified base frame isolating mechanical vibrations between extruders |
Packaging converters face intense margin pressure from raw virgin resin prices while complying with strict food contact safety regulations. The VihoX 110+65 line provides the ultimate technical answer: its ABA co-extrusion feedblock allows the main 110 extruder to run up to 70% low-cost crushed skeleton regrind or recycled pellet material in the center core layer (B), while the secondary 65 extruder covers both exterior surfaces with virgin food-grade polymer (A). The resulting sheet provides 100% food-grade contact surface appearance, perfect sealability, and dramatic raw material cost savings.
Co-extruding multiple polymer streams with divergent viscosities requires precise pressure balance before the streams converge inside the feedblock. The VihoX 110+65 incorporates a 150CC precision melt pump that eliminates volumetric surging in the primary flow channel. Downstream, an asymmetrical three-roller calender stack (Φ350 mm top roll paired with two Φ450 mm high-capacity rolls) ensures prolonged web contact on the high-cooling side, preventing sheet curling and delamination.
This dual-extrusion line serves diverse packaging applications:
The co-extrusion feedblock features adjustable internal selector vanes allowing skin-to-core layer ratios from 10/80/10% up to 25/50/25% (or 20/80% for two-layer AB sheet).
Yes. By feeding different color masterbatches into the main 110 extruder and auxiliary 65 extruder, the line produces vibrant dual-color (AB) sheet rolls with sharp, distinct layer boundaries.
While total installed power is approx. 150 kW to accommodate cold startup heating, actual running power consumption stabilizes at approx. 80 kW during standard steady-state production.
Because both streams use the same base polymer matrix (e.g. PP virgin + PP regrind), thermal diffusion inside the feedblock creates permanent molecular weld with zero delamination risk.
Both the main 110 and auxiliary 65 extruders are equipped with continuous hydraulic slide-plate screen changers driven by a shared hydraulic power station.
Each calender roll is driven by an independent electric gear motor controlled by dedicated inverters, enabling fine micro-speed adjustment across the cooling web.
The physical machine footprint measures approx. 12 × 2.0 × 2.5 m. A ceiling height of ≥ 3.5 m is recommended for overhead crane roll removal and hopper loader clearance.
VihoX provides complete turnkey engineering: on-site machine positioning, wiring, cold/hot commissioning, resin formulation optimization, and 24/7 remote diagnostic support.
