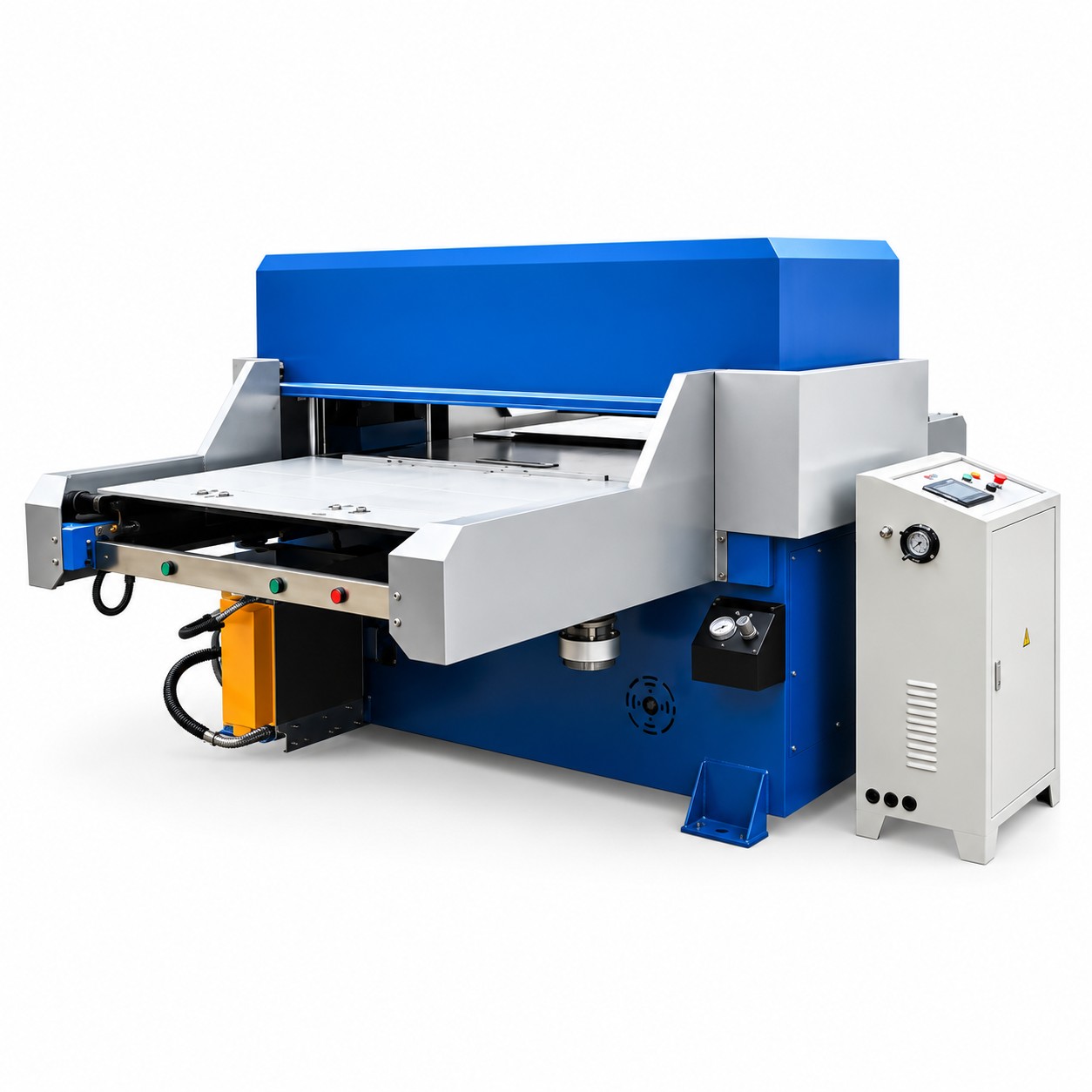

Standing as the maximum-tonnage powerhouse in our cutting machinery range, the VihoX-150FP delivers an extraordinary 150 metric tons of true hydraulic cutting force across an 810 × 1400 mm platen bed. Weighing an imposing 7000 kg and driven by a heavy-duty 11 kW motor, this ultra-rigid four-column machine tackles the most demanding cutting applications in the plastics industry. From dense, multi-cavity food packaging dies with over 45 meters of steel rule to thick structural ABS panels, automotive floor mats, and heavy HDPE containers, the 150FP delivers clean, burr-free cuts in a single stroke.
| Specification Parameter | Engineering Value (VihoX-150FP) | Production Advantage & Technical Impact |
|---|---|---|
| Absolute Maximum Force | 150 T (Metric Tons) | Delivers the highest pressing tonnage in our lineup, effortlessly severing extensive perimeter steel rules (over 45 meters) on rigid substrates. |
| Working Table Platen Area | 810 × 1400 mm | Engineered to match oversized vacuum forming tool matrices, enabling one-step die cutting across massive multi-impression layouts. |
| Hydraulic Stroke Clearance | 50–240 mm | Extended vertical travel envelope readily accommodates heavy composite tooling, deep clamshells, and high-density material plies. |
| Daylight Daylight Space | Approx. 50–240 mm | Broad opening grants clear overhead visibility and unhindered reach for rapid die changeover and sheet manipulation. |
| High-Output Drive Motor | 11 kW | Heavy industrial motor powers dual-stage hydraulic pumps to maintain snappy cycle speed and immediate head recovery. |
| Infeed Handling Architecture | Smooth Front Feed Platen | Sturdy loading platform lets operators feed wide, cumbersome plastic webs smoothly without snagging or buckling. |
| Operator Safety Mechanisms | Optical Light Curtain System | Standard electro-optical safety barriers span the front hazard zone, instantaneously freezing cylinder motion upon beam interruption. |
| Total Machine Structural Mass | Approx. 7000 kg | Imposing 7-ton cast chassis completely dampens dynamic breakthrough vibration, preserving knife sharpness across years of operation. |
| Floor Space Requirements | Approx. 3000 × 2300 × 1570 mm | Extra-rigid heavy-duty footprint built for round-the-clock industrial service in premier packaging manufacturing halls. |
The frame of the VihoX-150FP is constructed from extra-heavy cast and fabricated steel elements, heat-treated and precision-milled to eliminate deflection under maximum 150-ton hydraulic loads. Four oversized, hard-chromed pillar columns maintain strict platen perpendicularity. A reinforced mechanical balancing link mechanism ensures that both hydraulic cylinders descend in exact synchronization, preventing uneven knife penetration even when cutting asymmetric or unbalanced die layouts.
The 11 kW hydraulic power pack features dual high-pressure pumps and proportional hydraulic dampening valves. As the die cuts through rigid polymer stock, counter-pressure dampers instantly absorb breakthrough forces, protecting knife edges from dulling and preserving the surface of the cutting board.
Live factory test exhibiting the VihoX 150T heavy-duty full-platen press parting thick multi-cavity thermoformed containers.
The VihoX-150FP serves as the premier one-stroke blanking station in high-output packaging facilities:
The 150FP is chosen for maximum die perimeter rule lengths (over 45 meters), thick structural plastics over 3 mm, heavy automotive liners, or tough composite boards.
The massive frame mass completely absorbs high breakthrough shocks, preventing frame flexing, maintaining platen parallelism, and extending die knife life.
Yes, the heavy-duty hydraulic cooling circuit and automatic central lubrication system are engineered for continuous 24/7 manufacturing environments.
The console features optical light curtains, dual interlocked start buttons, emergency stops, low-voltage control circuits (24V DC), and phase-sequence protection.
We specify approximately 220 liters of ISO VG 46 anti-wear hydraulic oil, ensuring smooth valve operation and pump protection.
Yes, motorized belt feeding, pneumatic roll infeed, and rear sheet ejection tables can be integrated into the 150FP platform.
The heavy four-pillar guidance and mechanical balancing shaft maintain platen parallelism within 0.03 mm, ensuring identical cutting depth across every corner.
We provide comprehensive electrical schematics, hydraulic diagrams, video installation tutorials, foundation specifications, and direct engineer support via WhatsApp.
