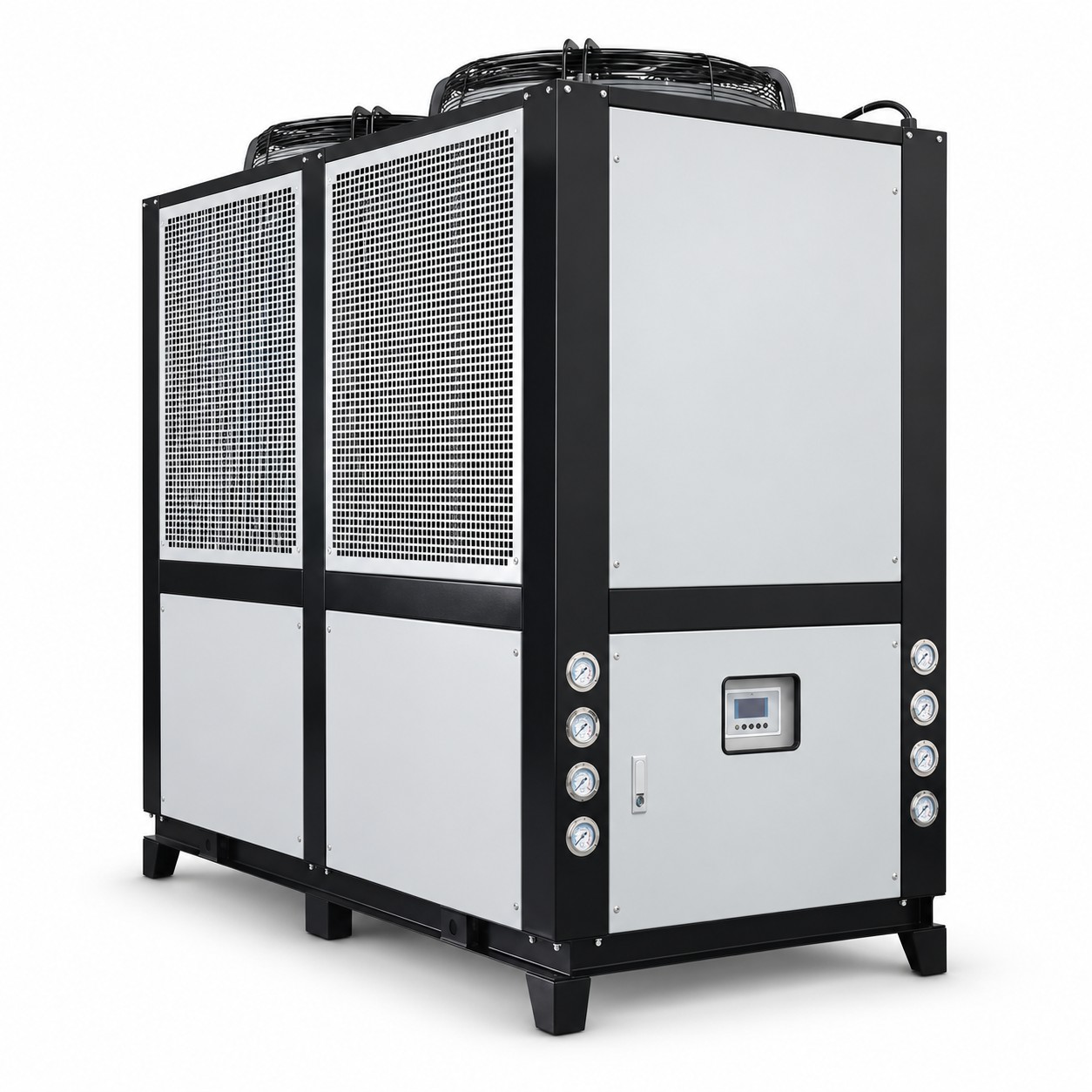

The VihoX-30AC 30HP air-cooled industrial water chiller represents our flagship thermal control solution for large-scale packaging factories, plastic sheet extrusion plants, and centralized thermoforming departments. Delivering a massive 83.6 kW (71,896 kcal/h / 23.77 RT) of nominal refrigeration capacity powered by a 27.15 kW heavy-duty scroll compressor, it stabilizes process temperatures across multi-line operations. A 450-liter SUS304 stainless steel buffer tank maintains uninterrupted thermal consistency under severe production demands.
Built on an ultra-rigid steel channel base frame measuring 2500 × 1200 mm with an operating weight of 1,150 kg, the VihoX-30AC circulates 14.33 m³/h of chilled water across generous DN65 flanged connections via an integrated 2.2 kW centrifugal pump. Powerful multi-fan overhead assemblies discharge 30,000 m³/h of hot condenser air. Complete with shell-and-tube or high-efficiency coil evaporators and advanced digital PLC diagnostics, this centralized unit provides rock-solid reliability for non-stop industrial packaging manufacturing.
Every flagship VihoX 30HP centralized industrial chiller undergoes extensive heavy-load commissioning on our factory test stand. Technicians measure dual-circuit refrigerant balance, calibrate digital PLC temperature cutouts against calibrated RTD probes, and verify 14.33 m³/h water circulation across high-resistance cooling manifolds. Watch our factory production and heavy-duty testing below:
The structural and thermal parameters detailed in the certified specification table below comply with standard rating benchmarks of 7°C water delivery and 35°C ambient air. Base electrical construction is 3Ph 380V 50Hz, with tailored overseas grid configurations engineered on demand.
| Equipment Metric | Certified Output Rating | Central Plant Operational Gain |
|---|---|---|
| Central Unit Identifier | VihoX-30AC | Flagship VihoX central plant refrigeration installation |
| Continuous Cooling Power | 83.6 kW / 71,896 kcal/h (23.77 RT) | Immense 83.6 kW capacity stabilizing whole packaging departments |
| Central Scroll Compressor | 27.15 kW (Hermetic Scroll) | Top-tier 27.15 kW industrial scroll compressor with high seasonal COP |
| Total Connected Demand | 32.33 kW | Industrial electrical distribution engineered for heavy duty cycles |
| Chilled Fluid Reservoir | 450 L (SUS304 Stainless Steel) | Half-ton 450L stainless buffer maintaining rock-solid plant water temps |
| Total Plant Flowrate | 14.33 m³/h | High-rate 14.33 m³/h water displacement for plant-wide supply manifolds |
| Heavy-Duty Delivery Pump | 2.2 kW (20 m head) | High-output 2.2 kW pump supplying extensive factory distribution grids |
| Central Piping Flanges | DN65 | Large-bore DN65 flanged interface minimizing plant-wide friction losses |
| Overhead Air Evacuation | Approx. 30,000 m³/h | Heavy-duty fan cluster discharging 30,000 m³/h of condenser heat |
| Chilled Supply Spectrum | 5°C to 35°C (Accuracy ±1°C) | Microcomputer controller maintaining steady water supplies under peak load |
| Refrigerant Feed Mechanism | Thermostatic Expansion Valve | Advanced refrigeration metering with dual suction accumulators |
| Industrial Electrical Spec | 3Ph 380V / 50Hz (220V/415V/460V/60Hz Customizable) | Heavy-duty electrical package adaptable to 380V/415V/440V/480V grids |
| Plant-Wide Safety Cutouts | High/Low Pressure, Overload, Overtemperature, Reverse Phase, Anti-Freeze, Water Flow Switch | Comprehensive automated PLC fail-safe interlocking on all subsystems |
| Structural Frame Dimensions | Approx. 2500 × 1200 × 1800 mm | Approx. 1150 kg | Skid-mounted heavy steel channel base with crane rigging lift lugs |
| Central Facility Pairing | Multiple thermoforming machines, full plastic sheet extrusion lines, or centralized factory chilling loops | Engineered for full sheet extrusion lines and large thermoformer batteries |
The VihoX-30AC is engineered for full plastic packaging plants running continuous sheet extrusion lines (calender rolls and haul-off cooling) combined with multiple high-speed cup forming or three-station container machines.
DN65 flanged connections allow the 30HP unit to serve as a central chiller header, feeding a distributed plant manifold with high volume (14.33 m³/h) at low pressure drops across long factory distribution runs.
Yes, while a SUS304 tank with immersed copper coil is standard, we offer cleanable heavy-duty shell-and-tube evaporators as an optional configuration for closed-loop pressurized factory circuits.
With nearly half a ton of chilled water in reserve, the system effortlessly absorbs massive thermal load spikes when an extrusion calender starts up or multiple thermoforming molds open simultaneously, preventing return-water temperature surges.
We customize the 32.33 kW total electrical load for standard 3Ph 380V/50Hz as well as 415V/50Hz, 440V/60Hz, or 480V/60Hz, incorporating heavy-duty Schneider contactors and soft-start options.
The system features dual independent refrigeration circuits, oil separators, suction line accumulators, high/low pressure relief valves, reverse phase protection, and multi-sensor PLC alarm interlocking.
With an equipment weight of approximately 1,150 kg, the VihoX-30AC incorporates integrated forklift pockets and top rigging lift lugs for safe crane placement on mezzanine decks or factory equipment pads.
Yes, our engineering team can provide recommended plant piping schematic layouts, header sizing advice, and valve selection guidance to optimize chilled water flow throughout your thermoforming workshop.
VihoX stands as your comprehensive manufacturing partner for industrial plastic packaging, supplying continuous extrusion lines, multi-station thermoformers, scrap granulators, and plant-wide centralized water chillers built for 24/7 reliability. For engineering consultations, plant chilled water piping layouts, or factory-direct quotes on the 30HP chiller, connect with us at:
