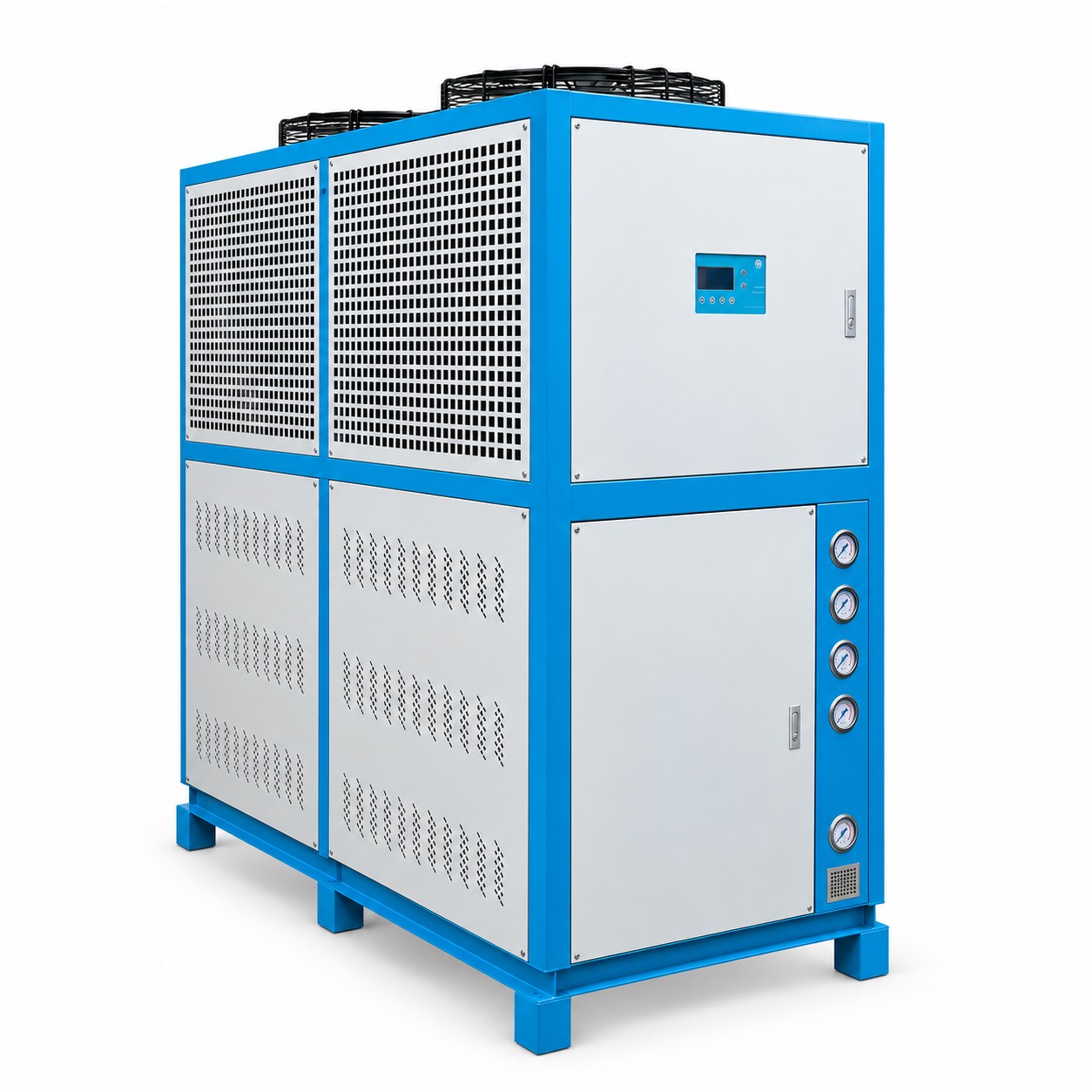

The VihoX-15AC 15HP air-cooled industrial water chiller provides heavy-duty central cooling for multi-station thermoforming lines, large food container molds, and multi-machine cup production bays. Engineering 41.8 kW (35,948 kcal/h) of continuous heat removal via a 13.62 kW scroll compressor, it stabilizes mold temperatures across simultaneous forming, trimming, and stacking stations. A generous 270-liter SUS304 stainless steel vessel dampens temperature fluctuations during intermittent mold cycling.
Constructed on a rigid structural steel chassis with a heavy-duty industrial blue-and-white powder-coated finish, the VihoX-15AC handles harsh plant conditions with ease. Its 1.5 kW circulation pump supplies 7.17 m³/h of chilled coolant across DN40 flanges, maintaining high Reynolds numbers inside intricate mold baffles. Overhead dual high-efficiency fans evacuate 15,000 m³/h of condenser heat, while the multi-stage electronic control system prevents thermal throttling even under continuous 24/7 operating schedules.
Quality assurance protocols require every VihoX 15HP chiller to complete extended continuous operational verification at our facility. Our engineers inspect four-point refrigeration pressures, verify phase protection interlocks, and measure decibel output alongside thermal pulldown speeds on multi-station tooling circuits. Check out our equipment assembly and live run demonstration:
The performance parameters summarized in the engineering matrix below represent audited factory standards at nominal 7°C leaving water and 35°C condenser ambient air. Standard electrical specification is 3Ph 380V 50Hz, fully adaptable to regional industrial power supplies.
| Performance Metric | Standard Certified Rating | Manufacturing System Benefit |
|---|---|---|
| Equipment Identifier | VihoX-15AC | High-tonnage VihoX industrial refrigeration installation |
| Nominal Heat Rejection | 41.8 kW / 35,948 kcal/h (11.89 RT) | Continuous heat dissipation across multi-station forming and trimming dies |
| Refrigeration Compressor | 13.62 kW (Hermetic Scroll) | Heavy-duty 13.62 kW scroll compressor built for continuous heavy service |
| Total Power Requirement | 16.31 kW | Optimized electrical distribution panel with individual contactors |
| Fluid Storage Tank | 270 L (SUS304 Stainless Steel) | Massive 270L stainless reservoir insulating against cross-station surges |
| Process Liquid Flowrate | 7.17 m³/h | High volumetric delivery of 7.17 m³/h across complex tool manifolds |
| Circulation Pump Motor | 1.5 kW (20 m head) | Powerful 1.5 kW motor overcoming lengthy distribution pipe friction |
| Process Water Connections | DN40 | Standard DN40 flanged interface accommodating high-flow headers |
| Condenser Heat Exhaust | Approx. 15,000 m³/h | Overhead high-capacity blowers dissipating 15,000 m³/h into plant exhaust |
| Usable Water Temperature | 5°C to 35°C (Accuracy ±1°C) | Consistent chilled water delivery preventing container warpage |
| Expansion Metering Device | Thermostatic Expansion Valve | Precision refrigerant metering handling fluctuating multi-station loads |
| Factory Electrical Design | 3Ph 380V / 50Hz (220V/415V/460V/60Hz Customizable) | Configurable for 380V/415V/460V heavy industrial plant standards |
| Automated Protective Relays | High/Low Pressure, Overload, Overtemperature, Reverse Phase, Anti-Freeze, Water Flow Switch | Comprehensive sensory protection safeguarding against dry-run and coil freezing |
| Skid Dimensions & Weight | Approx. 1800 × 1000 × 1600 mm | Approx. 750 kg | Heavy structural channel frame engineered for forklift placement |
| Matched Packaging Machinery | 1 medium three-station thermoforming machine (such as 710×850 or 710×610) or 1–2 cup making machines | Tailored for VihoX 710×850/710×610 3-station formers or dual cup machines |
The VihoX-15AC is engineered to support one medium three-station thermoformer (such as the VihoX 710×850 or 710×610), or dual simultaneous cup making machines running high-speed food container packaging.
Multi-station machines have separate forming and punch-die cooling requirements; the 270L buffer ensures both stations receive chilled water at stable temperatures without cross-station thermal interference.
The entire fluid circuit is built with SUS304 stainless steel reservoir walls, copper heat exchange coils, and brass/bronze fittings, ensuring rust-free operation that protects precision CNC-machined mold channels.
Yes, with 7.17 m³/h flow and 41.8 kW capacity, it can provide chilled water to 3-roll sheet polishing calenders on compact single-screw sheet lines within its cooling envelope.
The unit features an IP54-rated sealed electrical enclosure with Schneider/Chint thermal overloads, phase sequencers, and an illuminated digital PLC interface showing run hours and diagnostics.
We recommend maintaining at least 1.2 meters of clear clearance on the air-intake sides and at least 2.0 meters of open vertical clearance above the exhaust fans for unobstructed airflow dissipation.
A float-operated automatic water top-up valve connected to an external municipal or deionized water line maintains constant liquid head above the 1.5 kW pump suction inlet.
Yes, while standard models run on R410A or R407C, VihoX can configure the refrigeration circuit for low-GWP refrigerants upon customer specification.
