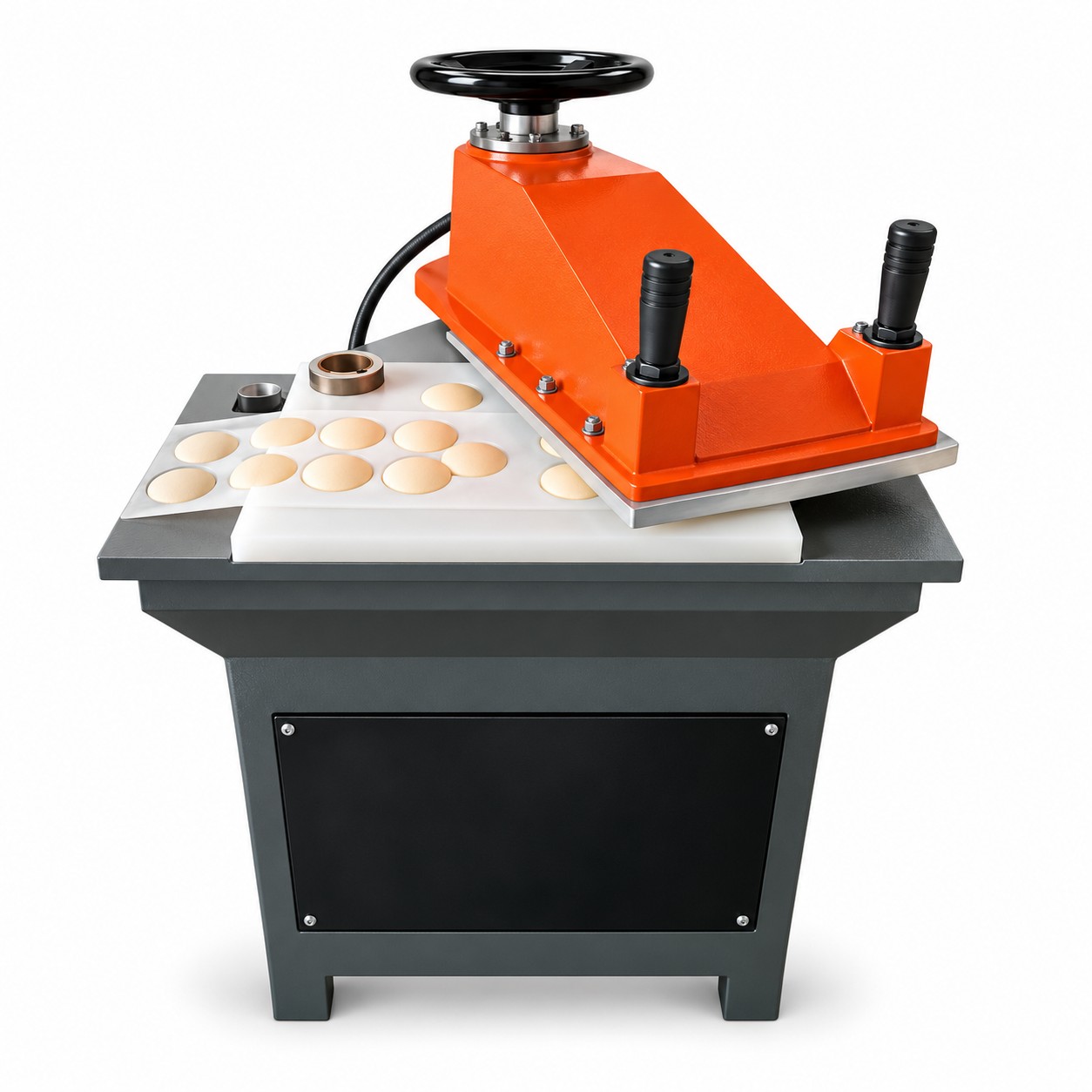

As the heavyweight flagship of our swing arm line, the VihoX-20SA generates an impressive 20 metric tons of true hydraulic cutting pressure across an expansive 500 × 1000 mm bed. Engineered for demanding industrial packaging operations, heavy-gauge thermoformed blister parts, and dense rubber or composite gasket manufacturing, the 20SA overcomes blade resistance where smaller clickers stall. Its reinforced radial beam swivels with surprising lightness, delivering maximum cutting authority without compromising operator dexterity or line cycle speed.
| Specification Parameter | Engineering Value (VihoX-20SA) | Production Advantage & Technical Impact |
|---|---|---|
| Peak Shearing Force | 20 T (Metric Tons) | Delivers the muscle needed for large-perimeter dies, heavy gauge APET/RPET, dense rubbers, and fiber boards. |
| Usable Platen Surface | 500 × 1000 mm | Spacious 1-meter table width supports big packaging formats, multi-cavity dies, and wider coiled sheet rolls. |
| Working Stroke Adjustment | 5–75 mm | Versatile stroke range allows instant tuning from shallow film kiss-cutting to deep blister blanking cycles. |
| Maximum Daylight Opening | Approx. 65–150 mm | Generous daylight provides plenty of clearance to reposition large steel dies without head obstruction. |
| Hydraulic Motor Rating | 1.5 kW | High-efficiency motor paired with high-volume pump delivers rapid downstroke and immediate head retraction. |
| Operator Interaction | Manual Load + Swing Platen | Effortless cantilever head swing ensures clear overhead view for precision die placement on printed graphics. |
| Workplace Protection | Two-Hand Dual Buttons | Strict dual-button control requires simultaneous input, guaranteeing operator safety during downward strokes. |
| Total Machine Mass | Approx. 700–1000 kg | Substantial machine weight anchors the frame to the shop floor, preventing creeping and vibration fatigue. |
| Footprint Dimensions | Approx. 1000 × 900 × 1350–1600 mm | Compact footprint fits easily next to thermoforming lines without requiring dedicated foundations. |
Built upon a massive one-piece cast base weighing nearly one metric ton, the VihoX-20SA absorbs heavy breakthrough shocks when steel dies penetrate rigid sheet stock. The heavy-walled vertical column is machined with extreme concentricity to preserve platen perpendicularity under full 20-ton loads. Hydraulic oil is channeled through an optimized valve block that prevents pressure spikes, protecting cylinder seals during rapid continuous strokes.
The 150 mm maximum daylight opening easily accommodates tall die configurations, deep-draw vacuum blister contours, and thick multi-layer material plies. An ergonomic dial mechanism provides fine height adjustment, allowing operators to achieve a kissing cut on backing sheets or complete severed blanking without tearing delicate outer edges.
Factory floor video demonstrating the VihoX 20T swing arm clicker machine cutting heavy thermoformed packaging sheet.
The VihoX-20SA integrates effectively into production cells requiring substantial tonnage in a compact footprint:
The 20SA is selected when total die blade length exceeds 1.5–2 meters, when cutting heavy polymers over 1.5 mm, or when the 500×1000 mm table is needed.
Yes, the 20-ton thrust easily blanks sound-deadening felt, synthetic leather, carpet pieces, and composite door panel skins.
The massive ground column and precision-matched bronze bushings ensure the platen remains parallel to the cutting bed across full strokes.
We recommend standard ISO VG 46 anti-wear hydraulic oil for moderate climates, or ISO VG 32 for cooler ambient environments.
Yes, we use standardized hydraulic valves, seals, and electrical contactors that can be serviced locally or shipped direct from our factory.
Yes, digital stroke counters can be wired into the control panel to track operator shift output and production quotas.
Due to its heavy mass (up to 1000 kg), rubber leveling pads are usually sufficient, though anchor bolt holes are provided for high-speed use.
Standard 380V models are available from stock; custom voltages or special factory paint colors typically dispatch in 7–10 working days.
Have questions about cutting knife length or material tonnage requirements? Contact VihoX engineering directly on WhatsApp or email to confirm machine sizing for your production line.
