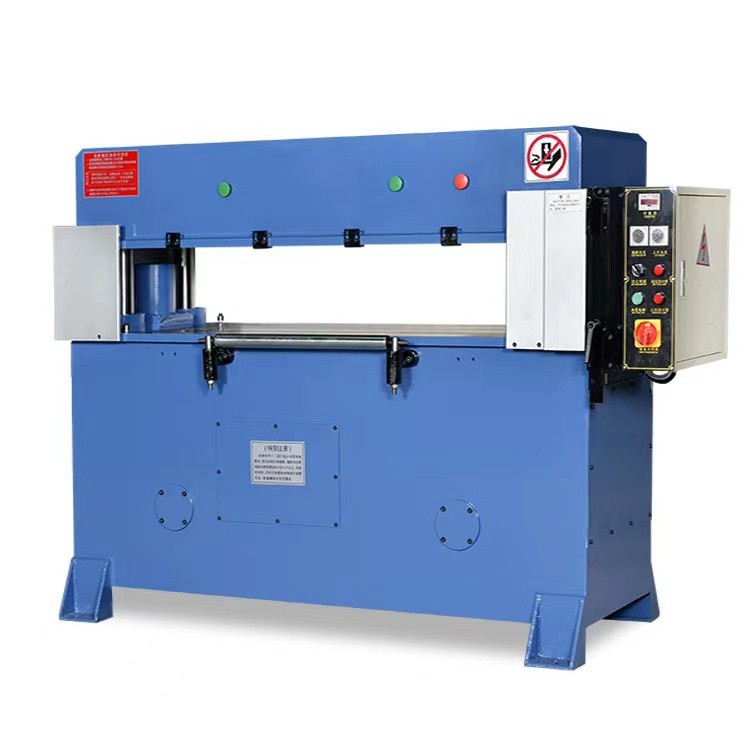

Upgrading main drive power to a heavy-duty 4 kW hydraulic power pack, the VihoX-50CP delivers 50 metric tons of controlled cutting force across its 1220 × 610 mm table. This machine is purpose-designed for high-density thermoformed clamshell packaging, electronics carrier trays, and multi-cavity blister dies with extensive perimeter rule lengths. Its rigid four-column architecture and balanced dual-cylinder design ensure clean cut-through across every cavity, preventing incomplete severance on outer corners.
| Specification Parameter | Engineering Value (VihoX-50CP) | Production Advantage & Technical Impact |
|---|---|---|
| Certified Clamping Output | 50 T (Metric Tons) | Handles dense multi-cavity blister dies, thicker PET/RPET sheets, and tough technical polymers with zero hesitation. |
| Working Platen Area | 1220 × 610 mm | Spacious bed accepts wide thermoformed webs and multi-piece gang dies without material pre-trimming. |
| Vertical Platen Stroke | 50–240 mm | Adjustable stroke allows rapid short-cycling on flat lids or full stroke for tall packaging blisters. |
| Maximum Daylight Gap | Approx. 50–200 mm | Provides generous room for high-profile knife dies and fast manual material loading/unloading. |
| Electric Pump Rating | 4 kW | High-capacity motor delivers snappy cycle rates without excessive electrical power draw. |
| Infeed Workflow | Manual Sheet Placement | Dependable, operator-friendly manual loading suitable for variable packaging production batches. |
| Safety Protection System | Two-Hand Interlocked Controls | Requires simultaneous push-button engagement within 0.3s, satisfying strict workplace safety rules. |
| Solid Chassis Weight | Approx. 3000–3500 kg | Massive machine weight anchors the frame securely, preventing floor creeping and sustaining accuracy. |
| Footprint Dimensions | Approx. 2000 × 1200 × 1450 mm | Sturdy, space-efficient footprint fits comfortably into existing packaging finishing bays. |
The VihoX-50CP utilizes high-tensile cast machine platens paired with solid forged steel column pillars. The hydraulic system incorporates dual high-pressure cylinders positioned symmetrically along the platen center line, driven by a quiet low-vibration vane pump. Mechanical balance shafts bridge the cylinders, ensuring parallel descent even under eccentric loading conditions.
An advanced hydraulic deceleration valve cushions the platen just before blade contact, followed by rapid pressure build to slice through polymer webs cleanly. An integrated pressure relay instantly halts downward motion upon breakthrough, preventing knives from biting too deeply into the nylon cutting pad.
Factory test footage displaying the VihoX 50T four-column hydraulic cutting press cleanly trimming thermoformed blister packaging.
The VihoX-50CP performs vital secondary finishing operations across packaging manufacturing plants:
Standard 23.8 mm or 32 mm laser-cut wooden dies, sandwich acrylic dies, and steel strip punches operate reliably on the 50CP bed.
With 50 tons of hydraulic force and balanced four-column guidance, the 50CP shears cleanly through tough, brittle polymers without edge whitening.
Yes, operators adjust micro-metric threaded collars on the balance shaft to set the exact bottom dead center within tenths of a millimeter.
Standard equipment includes dual interlocked start buttons and emergency stop palm switches; optical safety curtains can be added upon request.
The 50CP features a larger 4 kW power unit, enabling faster cylinder downstroke and return cycles while handling 25% higher cutting resistance.
Daily grease lubrication of the four column bushings and a quick visual inspection of hydraulic oil level and filter gauges are all that is required.
Yes, the 50CP is widely used in automotive packaging for cutting dense polyethylene foam inserts, sound insulation felts, and leather components.
Yes, our factory custom-winds drive motors and configures electric cabinets for all international voltage and frequency requirements.
