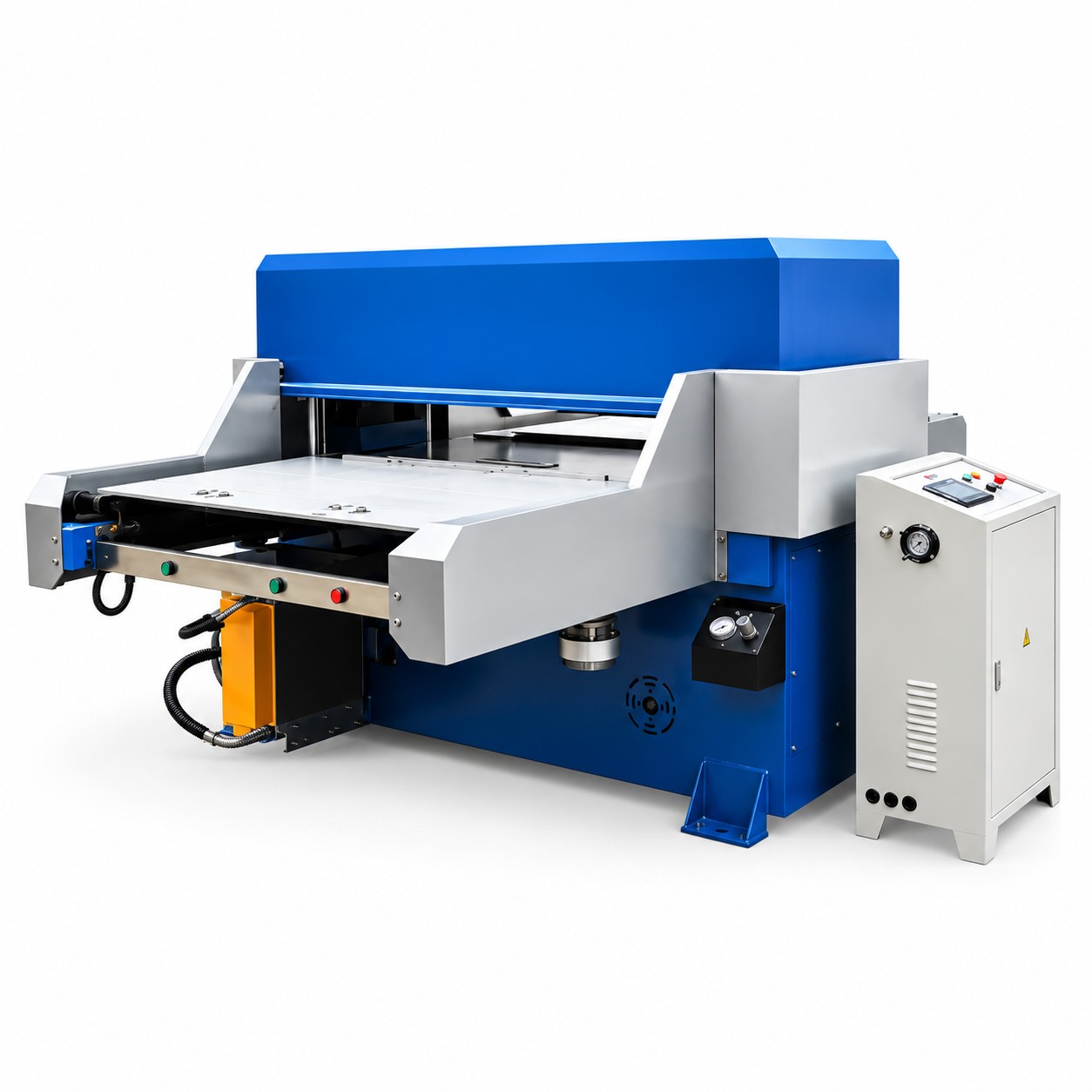

The VihoX-80FP is an industrial full-platen precision four-column hydraulic cutting press designed specifically for single-stroke blanking of entire thermoformed plastic sheets. Equipped with an expansive 810 × 1400 mm platen bed and a dedicated front feeding table, the 80FP accepts complete forming sheets directly from vacuum forming machines. Delivering 80 metric tons of uniform hydraulic thrust powered by a 7.5 kW motor, this heavy-duty press cuts dozens of blister trays, clamshells, or container lids simultaneously with clean, burr-free edges.
| Specification Parameter | Engineering Value (VihoX-80FP) | Production Advantage & Technical Impact |
|---|---|---|
| Certified Blanking Capacity | 80 T (Metric Tons) | Delivers the heavy tonnage needed for full-platen dies with extensive perimeter knife rules (up to 25 meters). |
| Full-Platen Table Dimensions | 810 × 1400 mm | Matches standard vacuum forming mold formats, allowing entire thermoformed sheets to be parted in one cycle. |
| Adjustable Shearing Stroke | 50–240 mm | Versatile stroke range easily accommodates tall blister profiles and multi-layer plastic sheet stacks. |
| Maximum Daylight Opening | Approx. 50–240 mm | Wide daylight opening provides ample clearance for large full-platen dies and smooth manual or automated feeding. |
| High-Torque Drive Motor | 7.5 kW | Industrial motor drives a heavy-duty hydraulic pump, ensuring fast platen advance and powerful shearing pressure. |
| Material Handling System | Front Infeed Table | Smooth front loading table streamlines material insertion; motorized conveyor feeding can be added on request. |
| Safety Protection Array | Infrared Safety Curtain | Standard optical light curtains guard the infeed opening, immediately stopping platen motion if obstructed. |
| Heavy Frame Weight | Approx. 5000 kg | Massive 5-ton chassis absorbs cutting shock, stabilizing platen parallelism over years of continuous production. |
| Chassis Envelope Dimensions | Approx. 3000 × 2300 × 1570 mm | Heavy industrial construction engineered for high-volume thermoformed packaging manufacturing plants. |
Engineered around a massive 5000 kg welded and stress-relieved steel frame, the VihoX-80FP prevents platen flexing under full 80-ton blanking loads. Four large-diameter hard-chromed columns guide the moving platen, while an integrated mechanical balancing tie-rod mechanism maintains strict bed parallelism across the entire 1.4-meter span. The extended front loading platform allows operators to smoothly slide large formed sheets into the cutting zone without sheet distortion.
The 7.5 kW hydraulic power unit features high-flow directional valves and proportional counter-pressure dampening. When the large steel-rule die punches through the plastic sheet, hydraulic dampers absorb breakthrough shock, preventing the platen from slamming into the cutting board and significantly extending knife life.
Factory demonstration video showing the VihoX 80T full-platen cutting press blanking full thermoformed packaging sheets.
The VihoX-80FP acts as a central one-stroke blanking station in automated packaging production lines:
The 80FP is engineered for full-platen dies (810×1400 mm), allowing an entire formed sheet containing dozens of blisters to be parted in a single stroke.
The extended front table provides a smooth surface for operators to slide large, flexible thermoformed sheets into position without edge snagging.
Yes, we can equip the 80FP with motorized pull-roll feeders or rear pneumatic pushers for continuous roll-fed thermoforming blanking.
Hydraulic counter-pressure dampeners absorb the breakthrough shock when knives cut through plastic, preventing platen over-travel and pad damage.
The 80FP features an automatic central lubrication system that delivers metered lubricant to all four pillar bushings at programmable intervals.
The 80FP easily cuts APET, RPET, PVC, PP, HIPS, and barrier composite sheets ranging from 0.2 mm to over 2.0 mm in thickness.
The cabinet includes phase-sequence protection, thermal overloads, low-voltage control circuits (24V DC), and emergency stop interlocks.
Micro-metric digital stroke adjustment allows operators to set bottom dead center within 0.02 mm, ensuring uniform cut depth from corner to corner.
